Need a high-end couple’s camper that delivers big on space, style, and features?
Do you want Brinkley luxury in a more compact, easy-to-tow package?

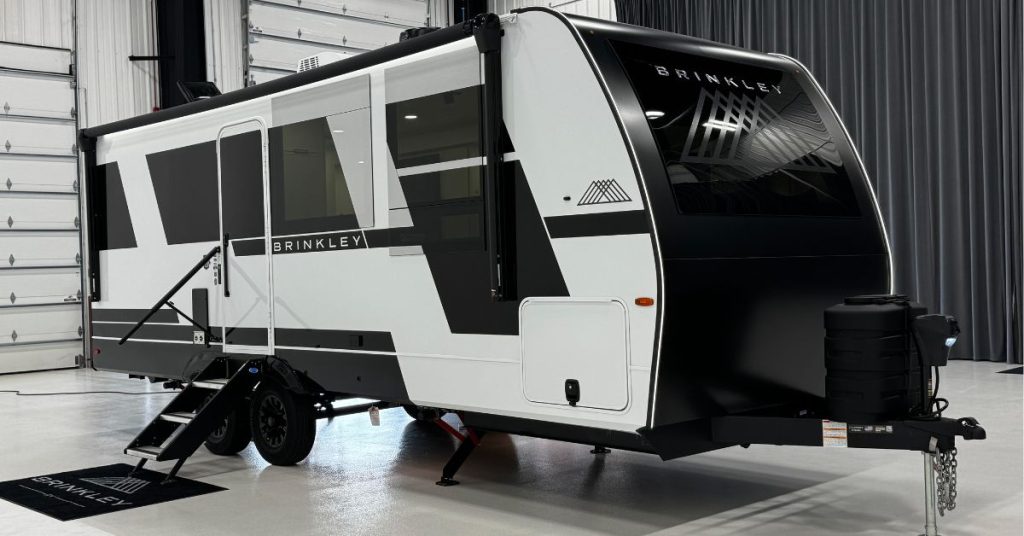

The Brinkley Model I 235 is their smallest travel trailer yet — but it might also be their most thoughtfully designed.
At Bish’s RV, we’ve reviewed every Brinkley model since day one — so let’s break down exactly what makes the I 235 stand out.
Watch Josh the RV Nerd’s video review of the Brinkley I 235 and see it inside and out!
TABLE OF CONTENTS
Want to See the Floor Plan and Price of a Brinkley Model I 235?
What makes the Brinkley Model I 235 Unique?

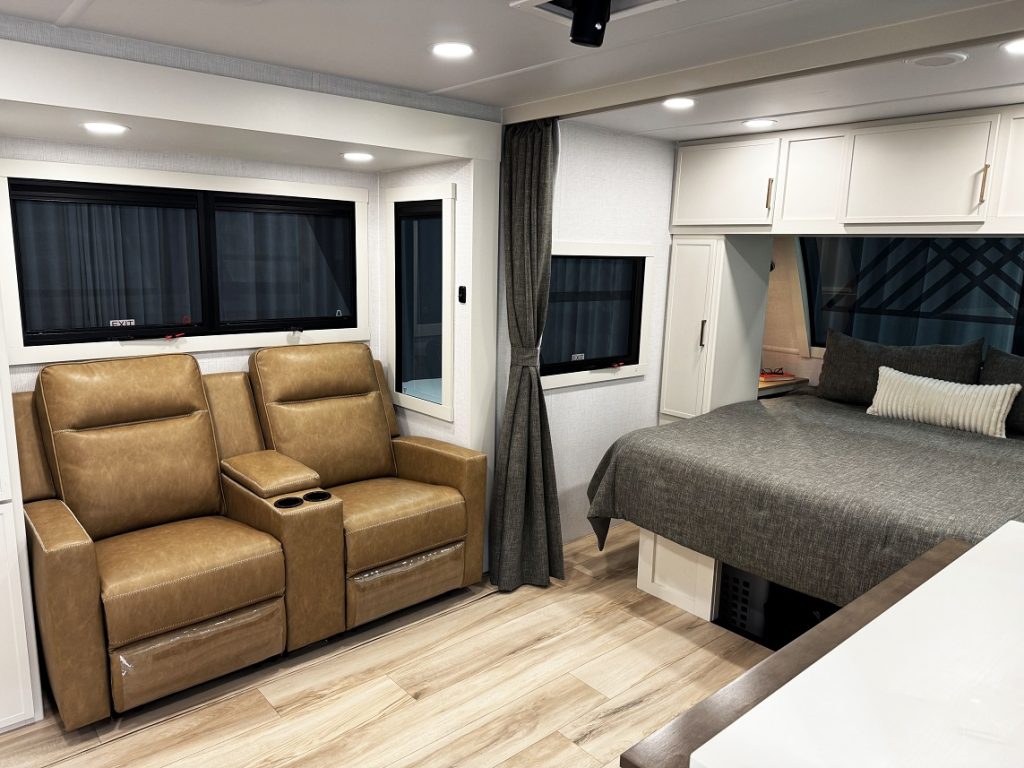

The Brinkley Model I 235 has an open-concept layout– which means more room inside!
The Brinkley RV Model I 235 is a compact luxury travel trailer designed for couples who want a high-quality camper that’s easier to tow. It’s the shortest and lightest Brinkley RV yet, but still packed with practical features for comfortable camping and long trips.

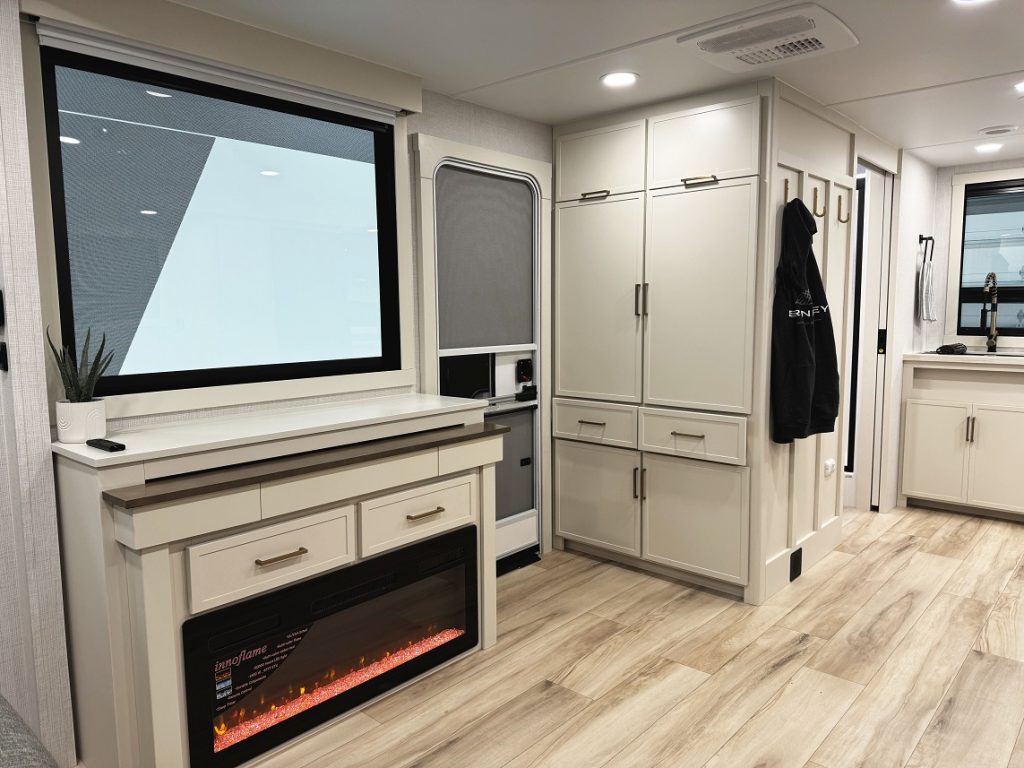

One of the biggest differences is its open-concept layout. This means the bedroom isn’t fully closed off from the rest of the trailer.
Instead of walls and doors, the space flows together, making the RV feel bigger and more open inside—even though it’s one of Brinkley’s smallest models.
It also includes things you don’t often see in travel trailers this size, like a smart projector for indoor and outdoor viewing, an upgraded air conditioner that runs quieter and more efficiently, and a large front window for more natural light and campsite views.
The I 235 is also designed to be easier to use, with features like:
- Large under-bed storage you can walk down into (instead of crawl under)
- Power outlets, USB ports, and light switches placed where you’d expect them
- A dining table that folds out when you need it—and disappears when you don’t
The I 235 gives you many of the same features Brinkley usually includes in their larger fifth wheels — but in a smaller, lighter travel trailer.

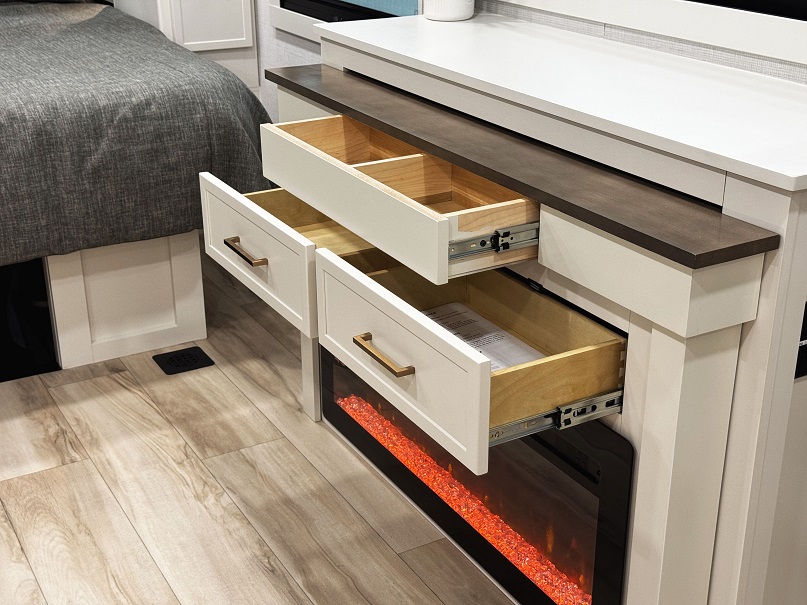

Brinkley made use of every inch—drawers, cabinets, and hidden storage throughout the interior.
Brinkley I 235 Specs and Dimensions

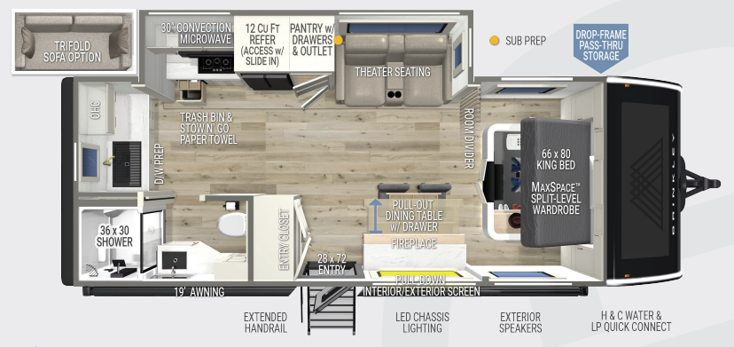

Floor plan of the Brinkley I 235 travel trailer — open-concept layout with front bed, mid seating, and rear kitchen.
Brinkley I 235 Specs and Dimensions
Here’s a quick look at the key specs and dimensions of the Brinkley I 235 travel trailer. These numbers can help you decide if it fits your tow vehicle, campsite, and how you like to travel.
| Feature | Spec |
|---|---|
| Exterior Length | 26′ 11″ |
| Exterior Width | 8′ |
| Exterior Height | 11′ 4″ |
| Ceiling Height | 6′ 9″ |
| Hitch Weight | 610 lbs* |
| Dry Weight | 6,891 lbs* |
| GVWR (Max Weight) | 8,495 lbs* |
| Max Cargo Capacity | 1,604 lbs* |
| Fresh Water Tank | 55 gal |
| Gray Water Tank | 45 gal |
| Black Water Tank | 45 gal |
| Solar Power | 200W factory-installed panel |
| Inverter | 3,000W pure sine wave |
*Prototype specs shown. Final production weights may vary slightly.
What Does the Brinkley Model I 235 Cost?
The MSRP for the Brinkley Model I 235 is set at $71,463.
This the manufacturer’s suggested price — but it’s not always what you’ll actually pay.
At Bish’s RV and other Brinkley dealers, we’re not allowed to advertise the sale price online due to Brinkley’s pricing policy.

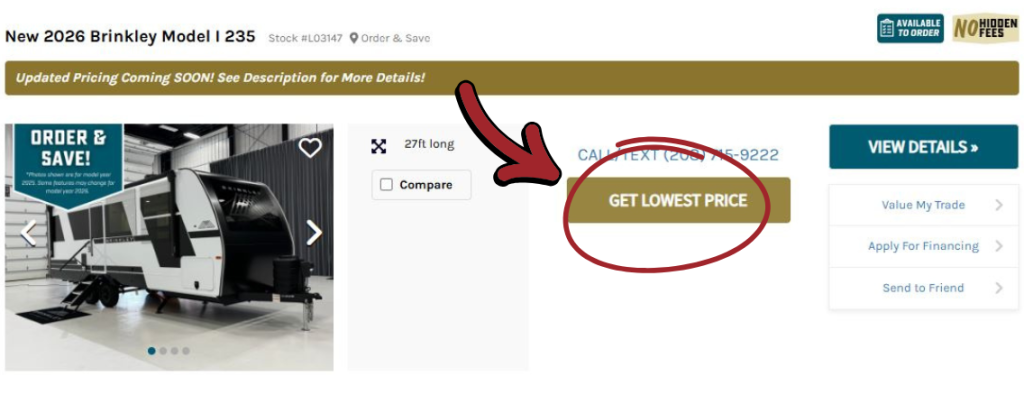

However, you can still see the real price—you just have to click a button like “Get Lowest Price” or “See Price Now” on our website.
Tap the “Get Lowest Price” button to check availability and see your price.
Typical Price Range for the Brinkley I 235:
Based on what we’ve seen across the industry, the I 235 will most likely show up at RV dealers in the $53,500 to $71,000 range depending on location, options, and availability.
Prices vary by dealer and region. MSRP shown for base configuration.
How to See the Lowest Price on a Brinkley Model I-235
Due to Brinkley’s pricing policy, dealers can’t show the sale price online — but you can still access it.
Click the button below to head to our inventory page.
Once you’re there, just tap “Get Lowest Price” to unlock real-time pricing from Bish’s RV.
What Are the Interior Features of the Brinkley Model I 235?

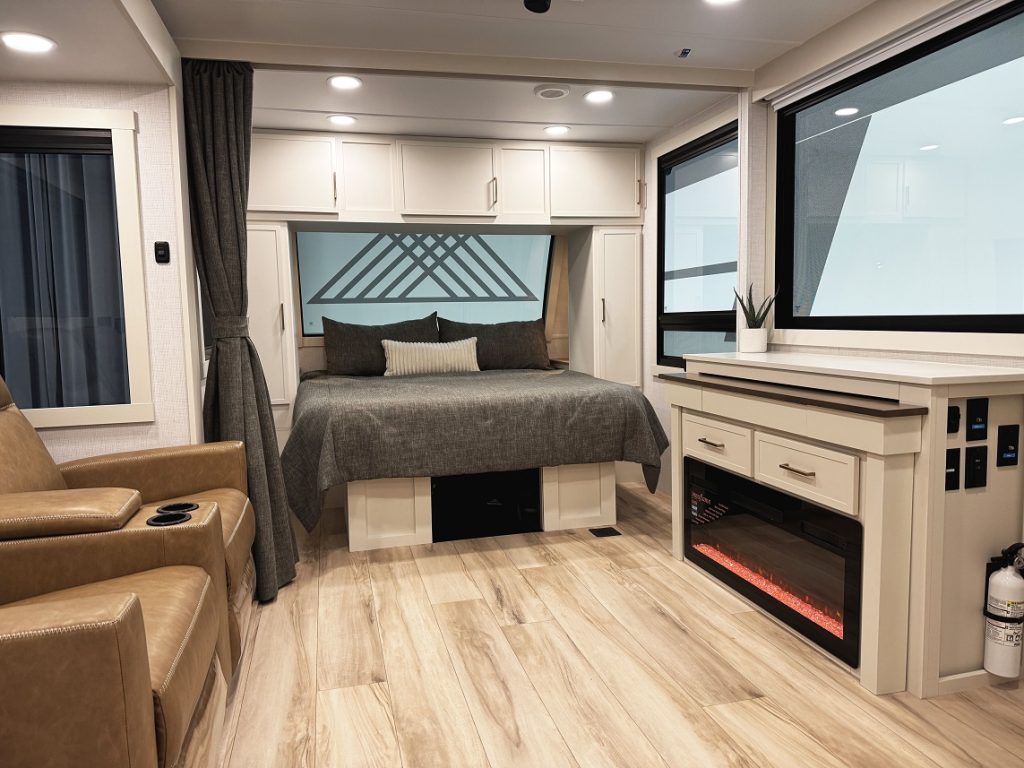

The Brinkley I 235 is compact on the outside but surprisingly open inside. It’s designed for couples who want a luxury feel without the size and weight of a fifth wheel.

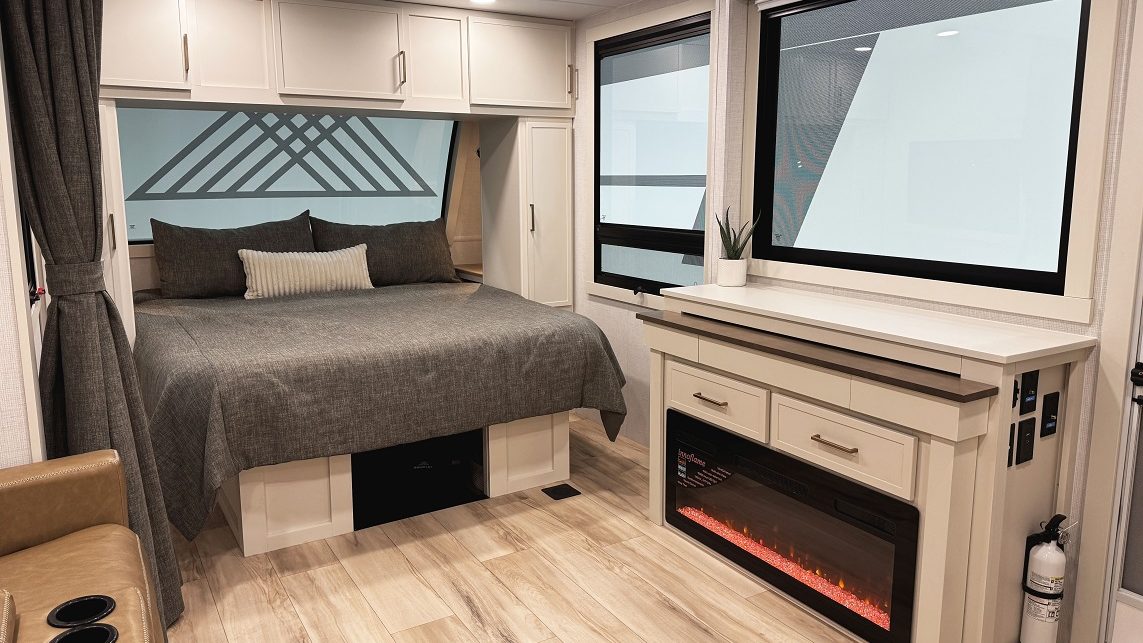

This is Brinkley’s first open-concept layout, which means there’s no solid wall separating the bedroom from the rest of the trailer. That design choice makes the space feel bigger and brighter, especially with the large front window and panoramic campsite-facing windows.
It also includes a smart projection system instead of a standard TV, giving you more flexibility and fewer bulky cabinets. You can use it for indoor or outdoor viewing.
Brinkley I 235 Key Interior Features:
- Open-concept front bedroom with an Olympic queen bed (66″ x 80″)

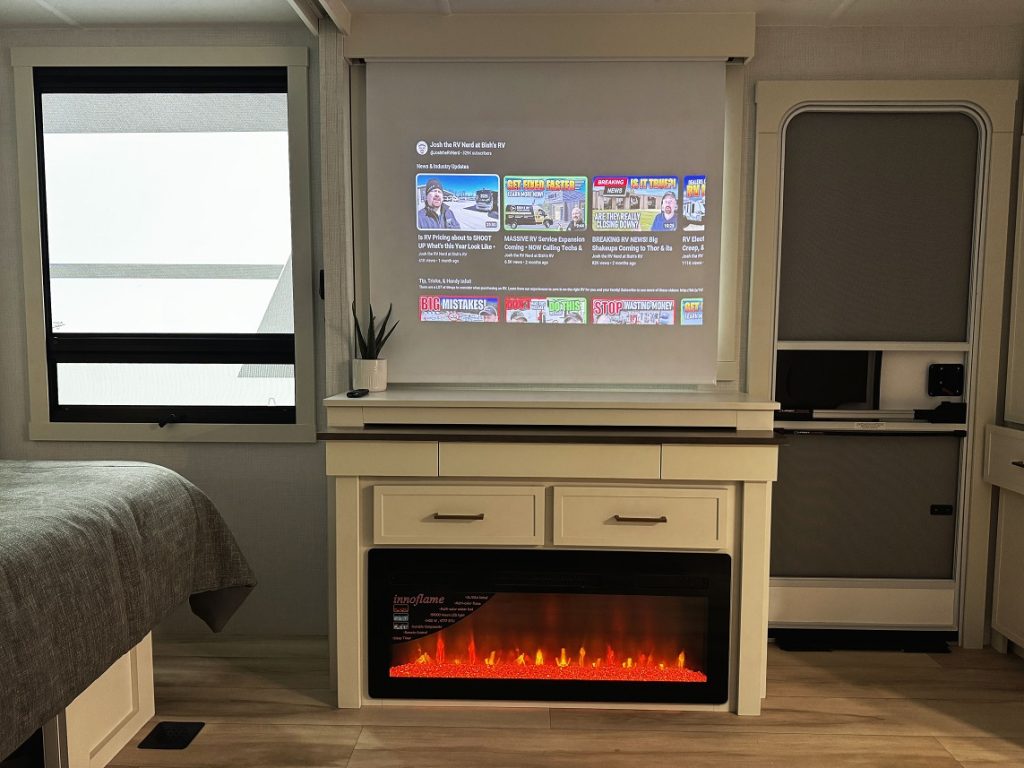

- Smart window projection system for movies or streaming

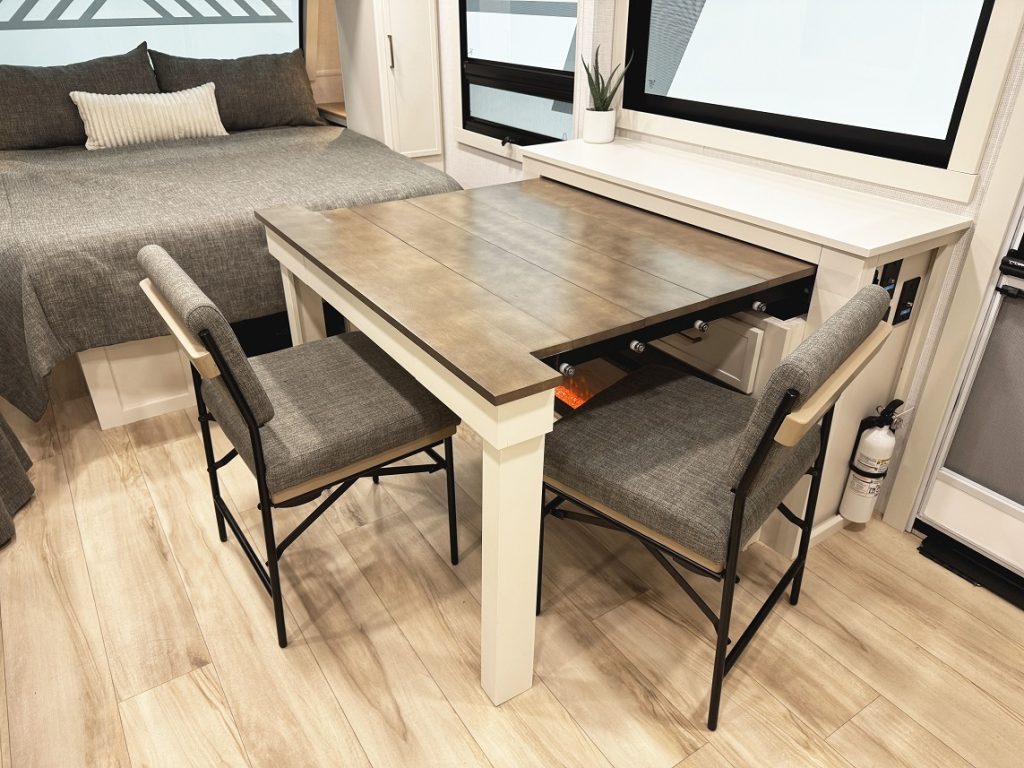

- Redesigned dinette bar with two folding chairs and hidden storage

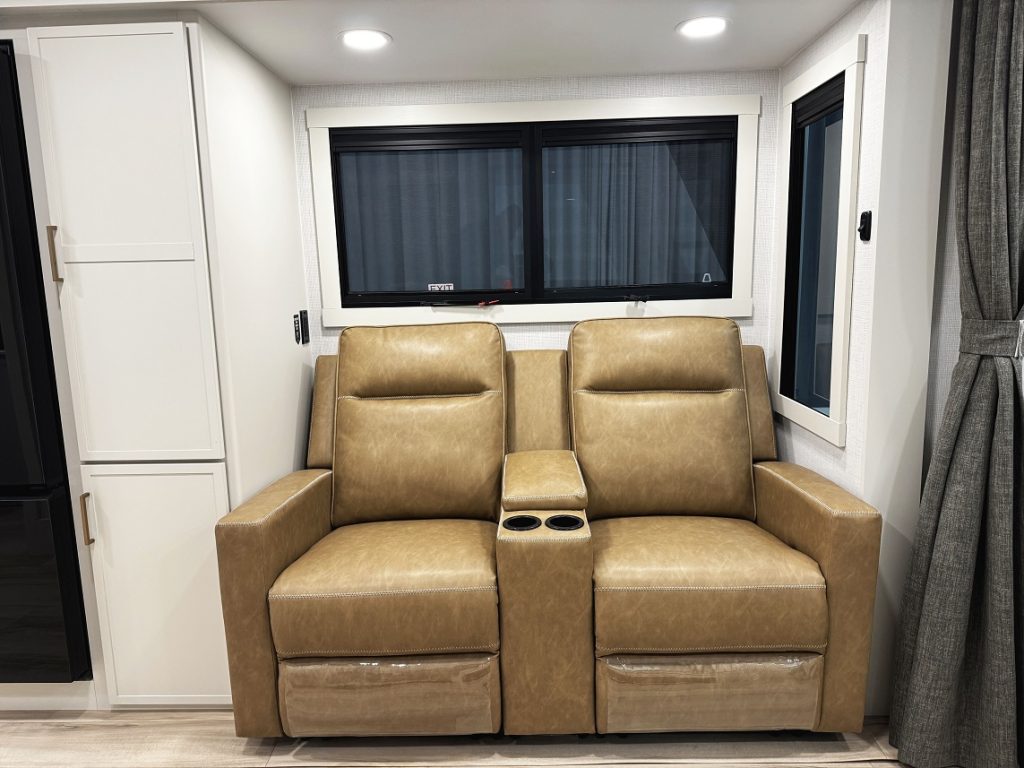

- Theater seating (with optional sleeper sofa)
- Large front windshield for natural light and front-facing campsite views

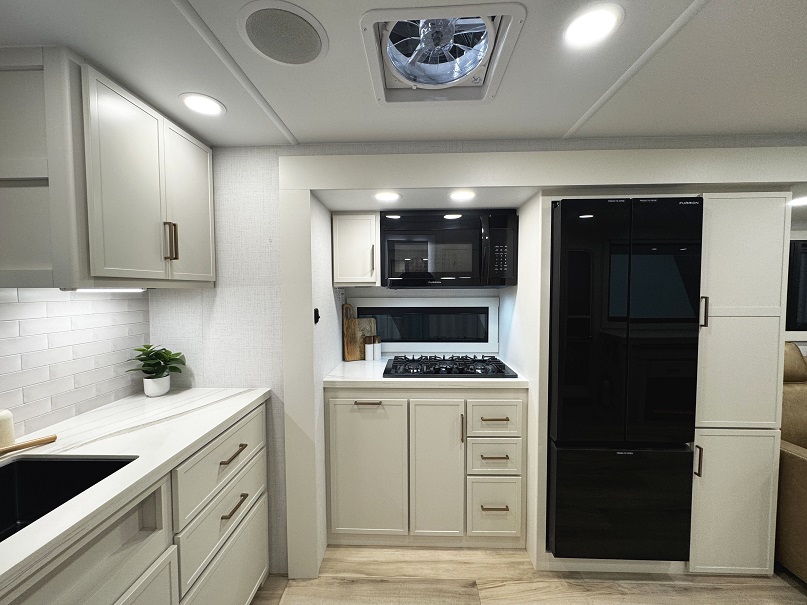

- Solid surface kitchen countertops
- Residential-style 3-in-1 oven (convection, microwave, and air fryer)
- 12V fridge with extra capacity
- Drawer storage under the dining area and bed

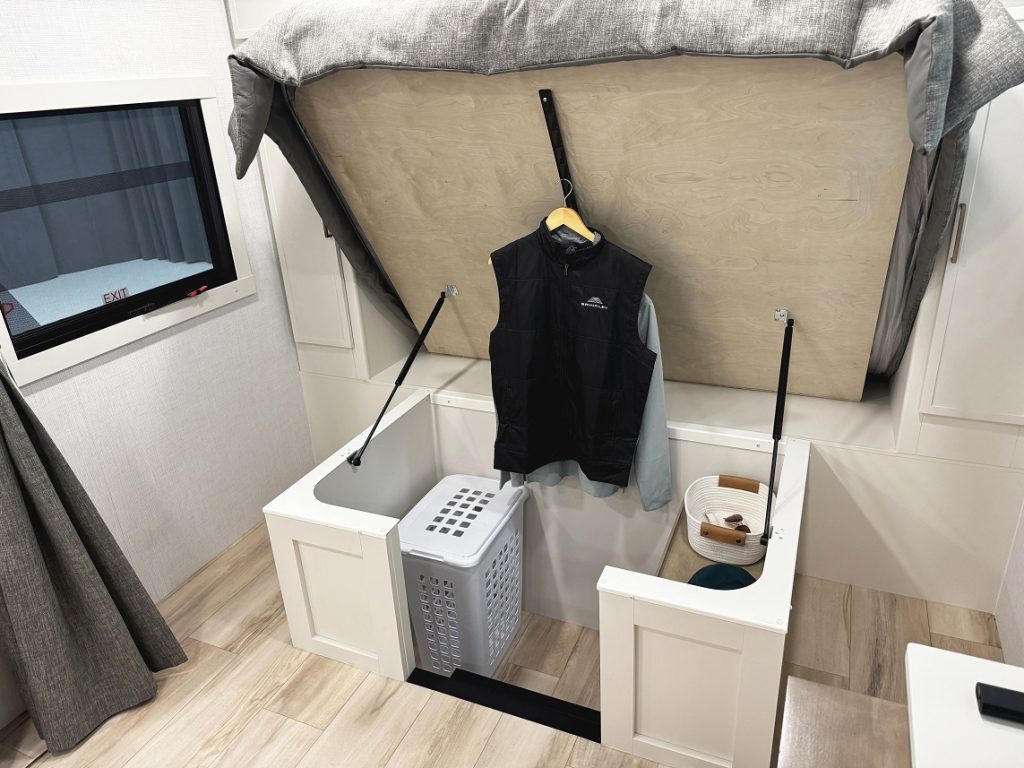

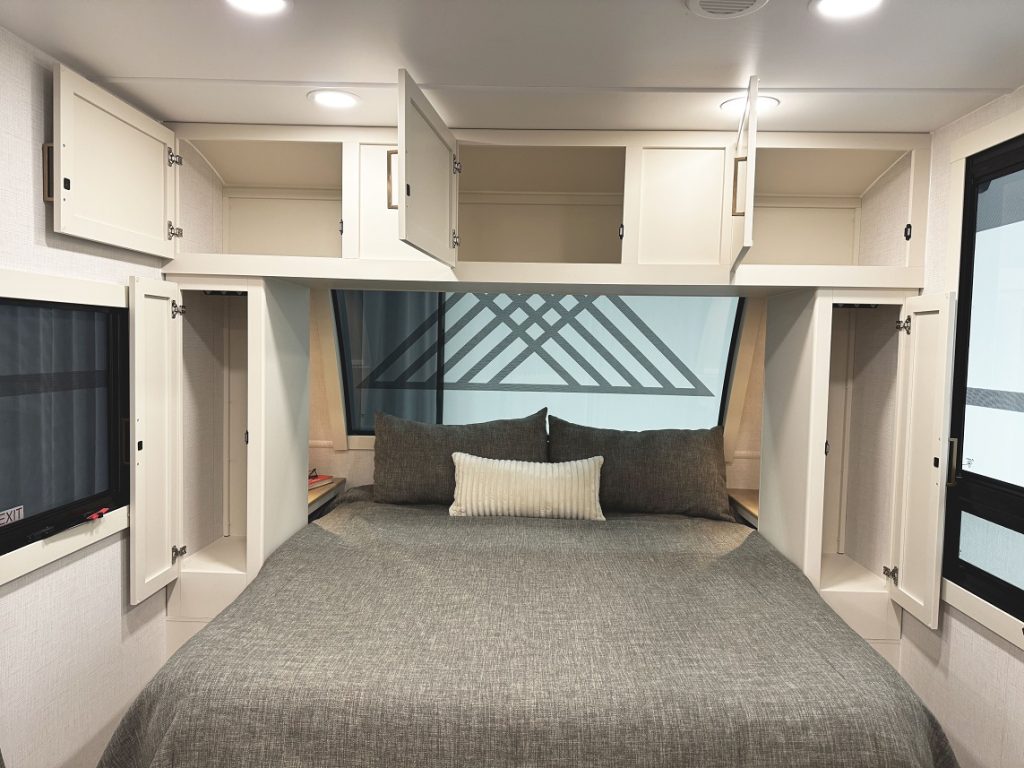

- Under-bed walk-down storage closet

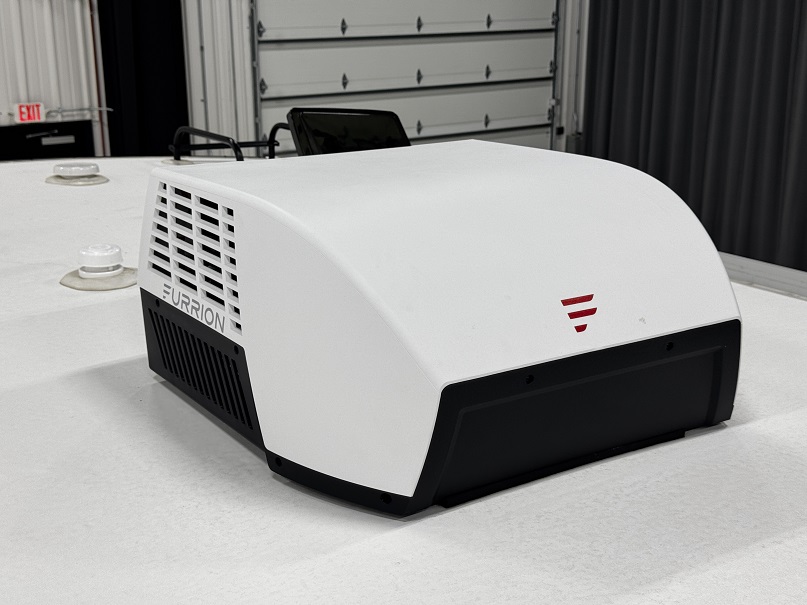

- Tall 6’9″ ceilings with variable-speed air conditioning
- Prepped for a dishwasher in the kitchen
- Soft-close cabinetry with dovetail drawers
- Multiple USB ports and power outlets placed where you actually need them
- Curtain divider for added bedroom privacy
If you want a smaller RV that still feels like a high-end home on wheels, the I 235 checks a lot of boxes.
What Are the Exterior Features of the Brinkley Model I 235?

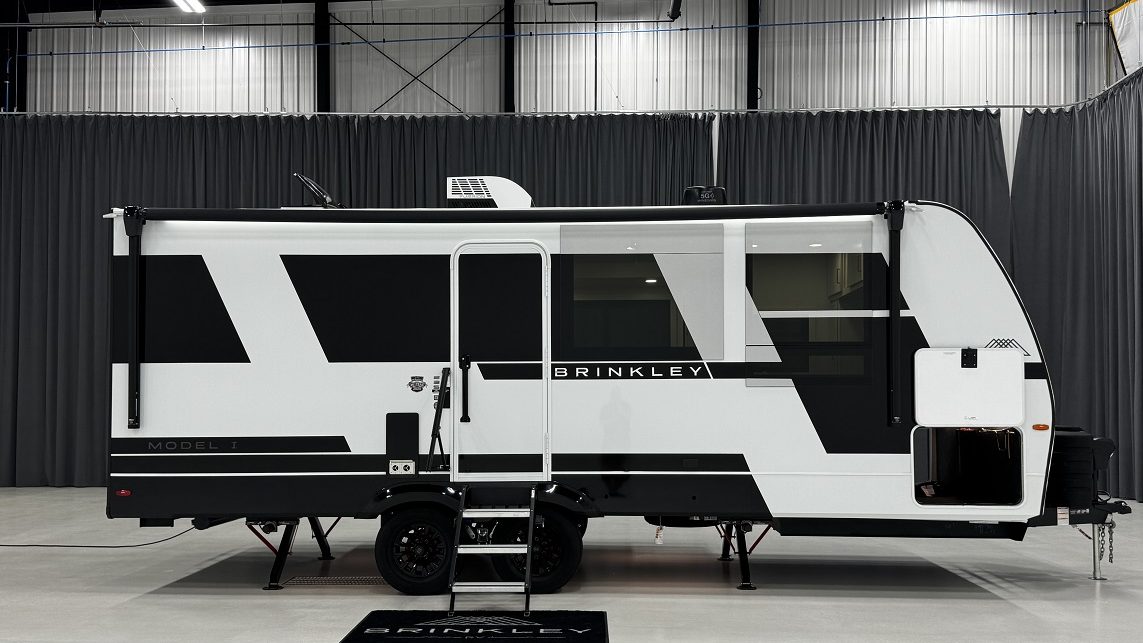

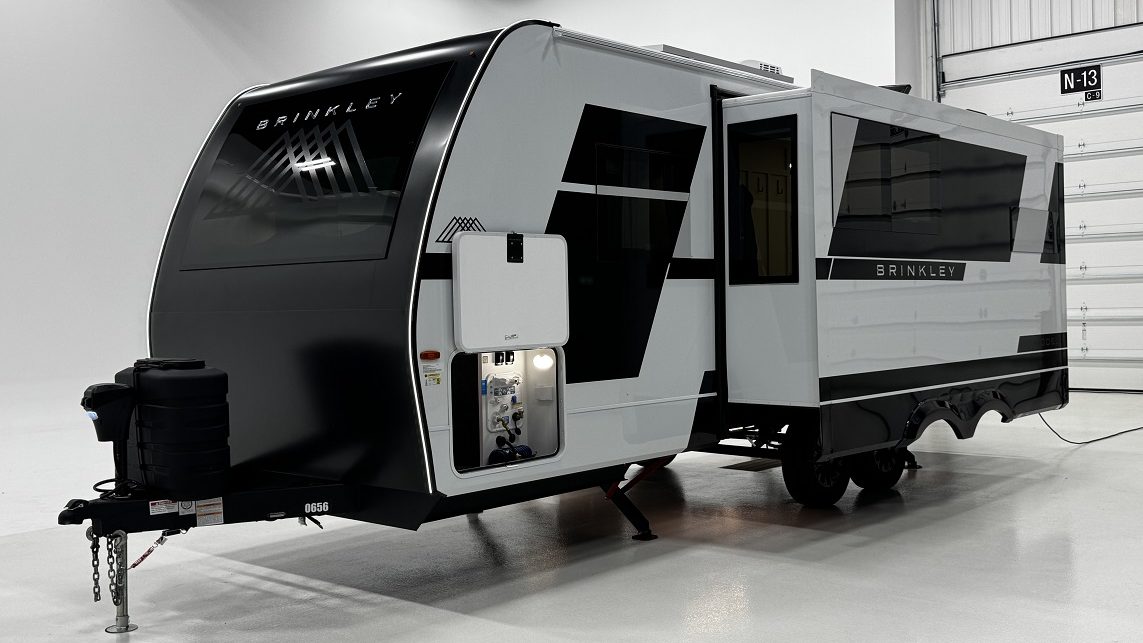

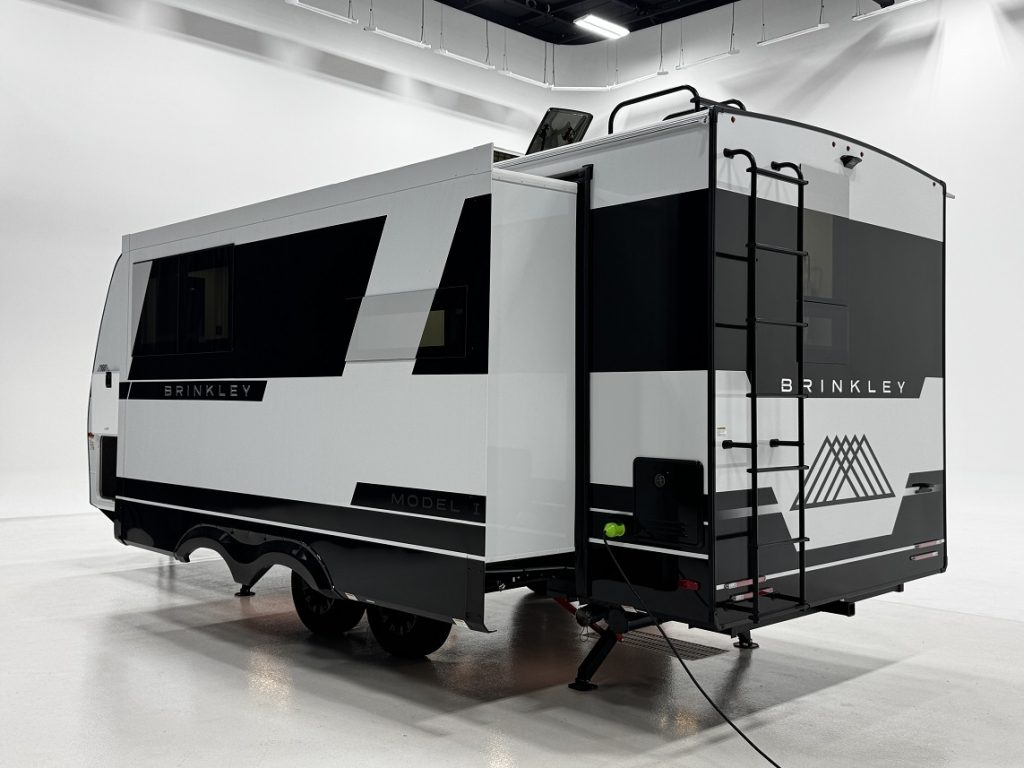

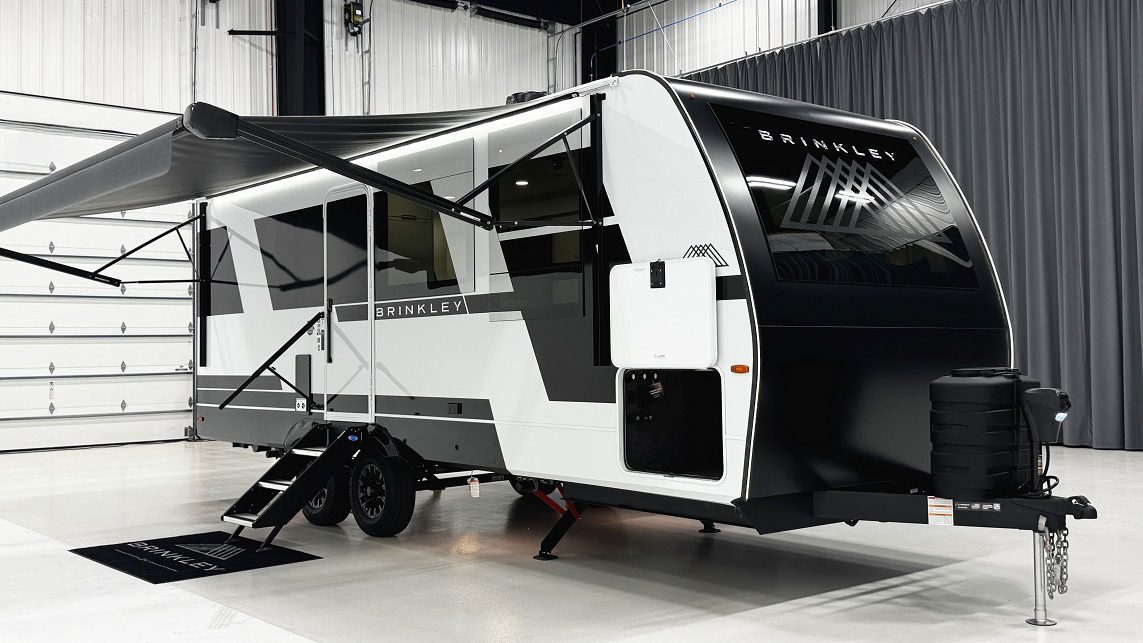

The outside of the Brinkley I 235 is just as thoughtfully designed as the inside. From the frame to the finish, it’s built for easy setup, long-term durability, and off-grid capability.
Brinkley uses an automotive-grade painted aluminum exterior, which holds up better over time than traditional RV fiberglass. It also includes a 200W solar panel and a 3,000W inverter standard—so you’re already wired for off-grid camping.
One of the most noticeable changes is the large front windshield, now upgraded with interior tinting to reduce scratches and give you better privacy and sun protection.
Brinkley I 235 Key Exterior Features:
- Automotive-painted aluminum skin for a cleaner, longer-lasting exterior

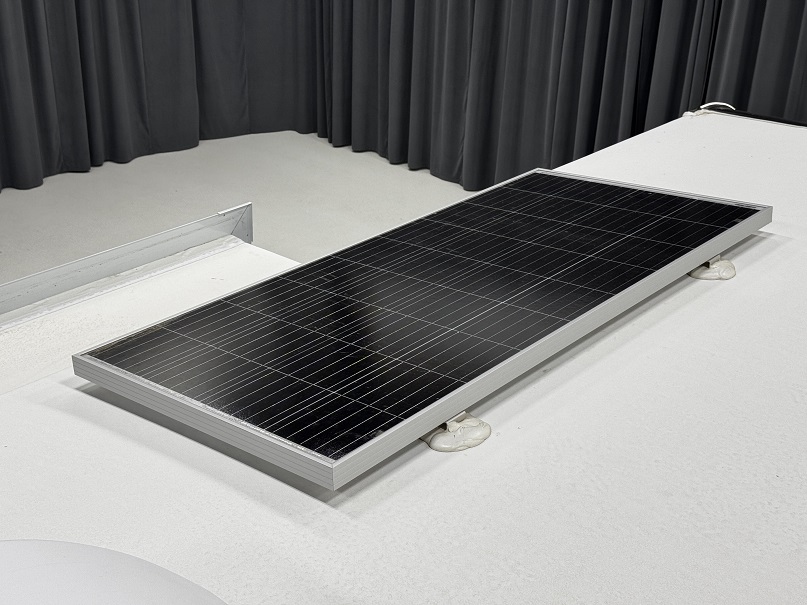

- Factory-installed 200W solar panel
- 3,000W pure sine inverter – runs nearly everything, including A/C, on battery
- Drop-frame storage with walk-down access under the bed
- Front windshield with interior tint layer to resist wear
- Heated and enclosed underbelly with radiant barrier insulation
- 60,000 BTU on-demand tankless water heater
- Single sewer outlet for easier dumping
- Back-up camera prep and ladder for roof access
- Power stabilizer jacks
- 19′ awning with dimmable LED lighting
- Outdoor gas grill quick-connect hookup
- ABS-equipped tires with electronic sway control and hill braking assist
- Outside speakers (skirt-mounted for better sound at camp)

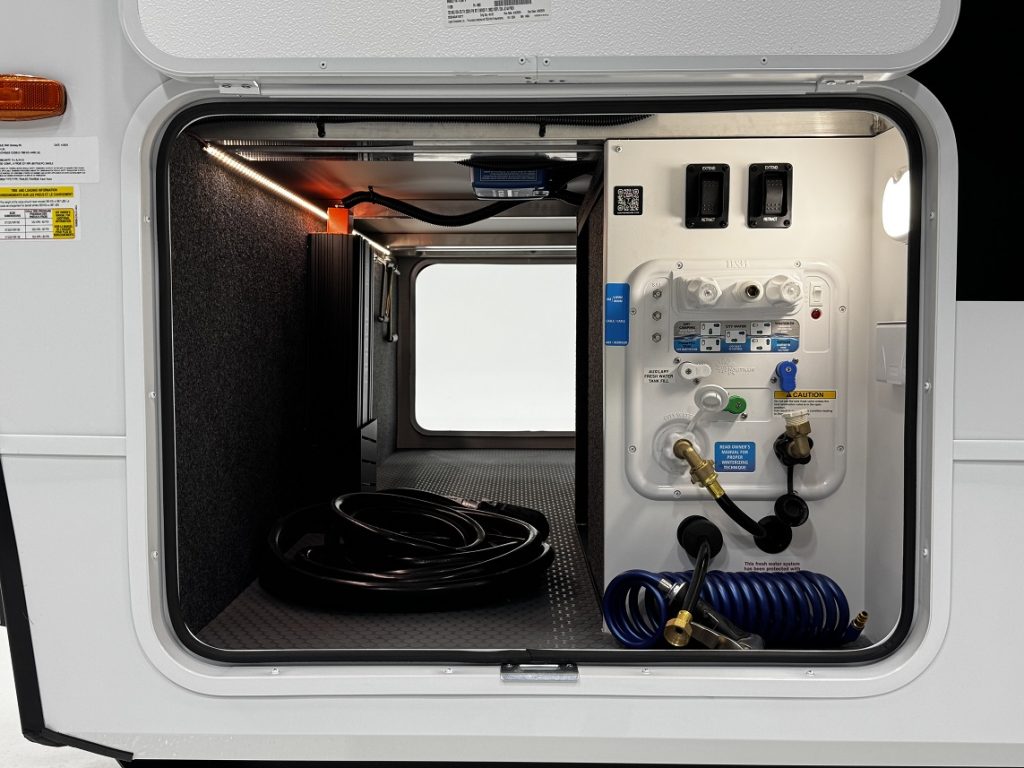

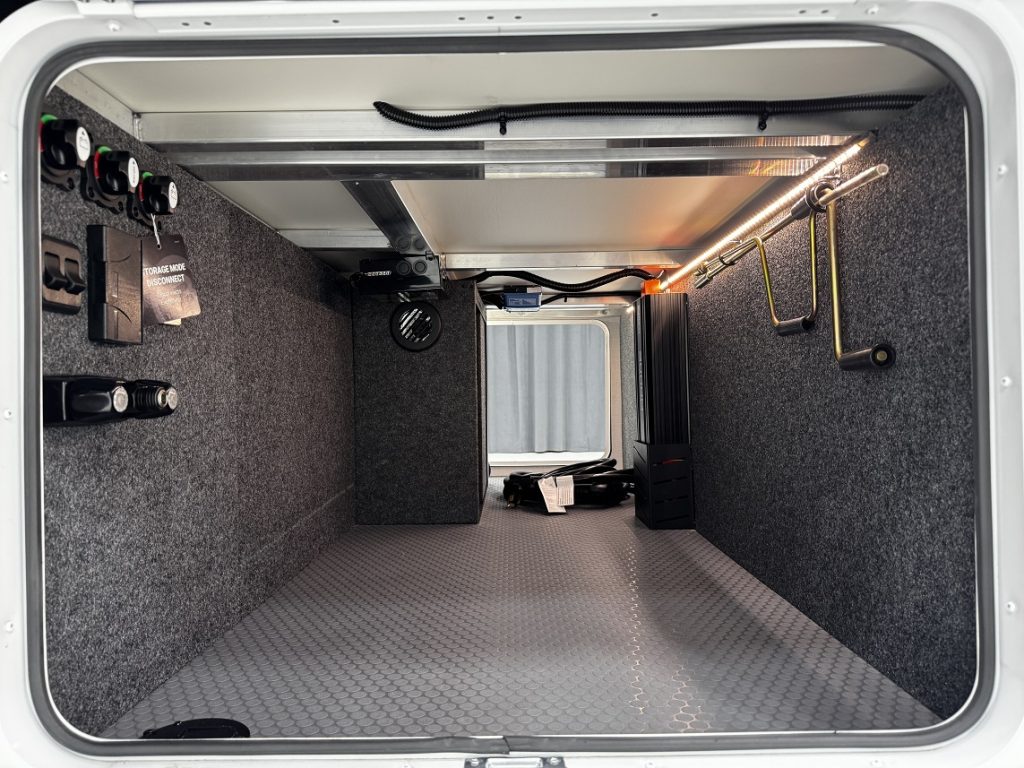

- Pass-through compartment with Victron solar controller and brass PEX plumbing
The I 235 is designed to be easier to tow, safer on the road, and more usable when you get to camp — whether you’re parking at a campground or heading off the grid.
Already have a camper but considering trading up to a Brinkley?
Find out what your current camper is worth.
Insider Tip: Learn how the value of your used camper is determined by RV dealers.
How Easy Is the Brinkley I 235 to Tow?
The Brinkley Model I 235 is one of the most towable Brinkley RVs to date.
With a dry weight under 7,000 lbs and a hitch weight of just 610 lbs, it’s designed to work with many properly equipped half-ton trucks.
But weight isn’t the only thing that matters. Brinkley also focused on ride quality and safety — adding premium towing features you don’t always see in travel trailers.
This model rides on twin 4,400 lb axles and includes ABS (anti-lock braking system), electronic anti-sway, and dynamic braking boost — which automatically adds brake pressure when towing down steep hills.
This means smoother control and less guesswork at the brake controller.
Towing & Safety Highlights:
- Half-ton towable (check your truck’s tow rating to confirm)
- Dry Weight: 6,891 lbs
- Hitch Weight: 610 lbs
- GVWR: 8,495 lbs
- Twin 4,400 lb axles for added strength and control
- ABS brakes with electronic sway control
- Dynamic braking assist for steep downhill towing

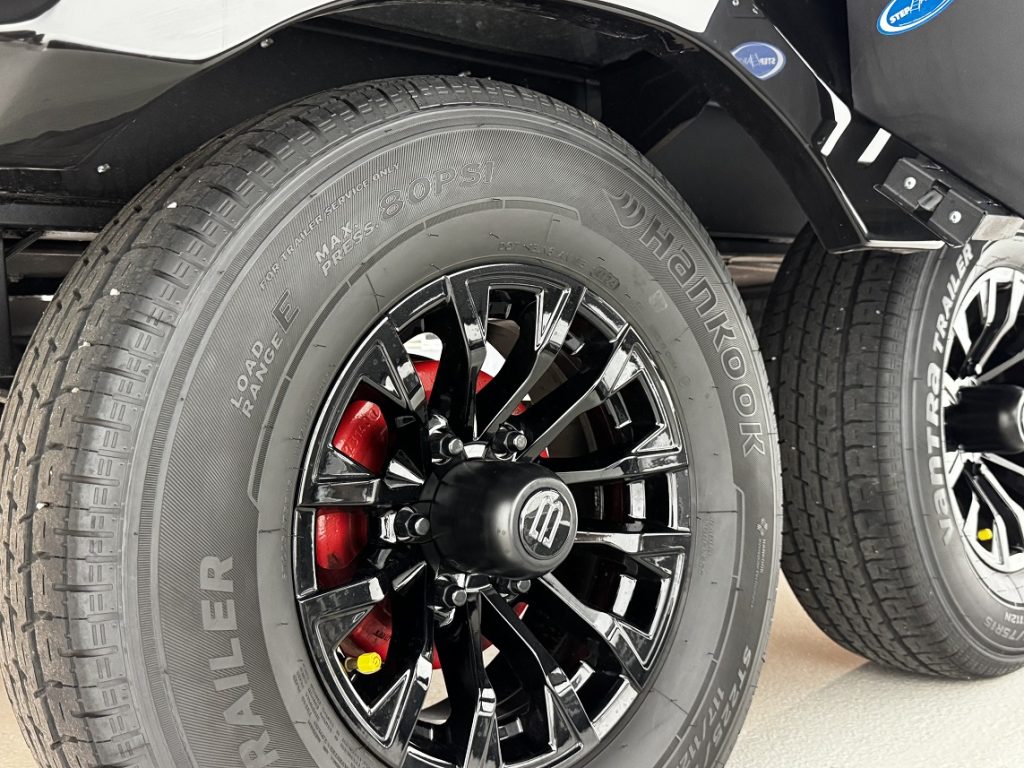

- 80 PSI Hankook radial tires (compatible with most standard air stations)
- Single sewer outlet for quicker, easier dump station stops
- Bright LED tail lights and running lights for visibility
Brinkley also reinforced the frame and rated the running gear above the trailer’s max weight, which helps reduce long-term wear and tear—especially on rougher roads.
Towing Tips for the Brinkley I 235
With a GVWR of 8,495 lbs and a hitch weight around 610 lbs, the I 235 works for many properly equipped half-ton trucks.
You’ll want a tow package, brake controller, and weight distribution hitch—especially for highway driving or towing in the hills.
See Brinkley RV Model I 235 Travel Trailer Pricing and Availability:
Is the Brinkley I 235 a Good Fit for You?
This camper isn’t built for everyone—and that’s a good thing. Here’s a quick look at who the I 235 is designed for, and who might want to look at a different model.
The Brinkley I 235 Is a Good Fit For:
- Couples or solo travelers who want a smaller RV with premium features
- Campers who like an open layout and don’t need a private bedroom wall
- Travelers looking for something half-ton towable without giving up comfort
- RVers who want off-grid potential with solar and inverter already built in
- Anyone tired of clunky design choices and ready for something more modern
It Might Not Be the Best Fit If:
- You need a fully private bedroom (for pets, kids, or early risers)
- You’re traveling with more than two people on a regular basis
- You prefer traditional TV setups instead of projection-style entertainment
- You’re looking for a more budget-friendly or entry-level travel trailer
- You’re planning to tow with a smaller SUV (this is not SUV towable)
Final Thoughts on the Brinkley I 235 Travel Trailer
The Brinkley Model I 235 brings something new to the lightweight travel trailer space — an open, modern interior paired with Brinkley’s signature high-end build.
It’s compact, but feels big inside. Simple to tow, but loaded with features you will use.
If you’re looking for a couple’s camper that doesn’t feel like a compromise, the I 235 is worth a serious look.
At Bish’s RV, we’ve followed Brinkley from the beginning and reviewed every model they’ve built. If you have questions, we’re here to help.
Next Steps to Owning a Brinkley Model I 275:
Shop our inventory and find the perfect Brinkley RV for you.
Frequently Asked Questions About the Brinkley I 235
1. Is the Brinkley I 235 half-ton towable?
Yes, the Brinkley I 235 is towable with many properly equipped half-ton trucks. It has a dry weight of 6,891 lbs and a hitch weight of 610 lbs, so always check your truck’s towing capacity before hitting the road.
2. What is the length of the Brinkley I 235 travel trailer?
The I 235 is 26 feet 11 inches long from tongue to bumper.
3. Does the Brinkley I 235 have a private bedroom?
No, the I 235 uses an open-concept layout. The bed is located at the front of the trailer without a wall or solid door separating it from the rest of the space. A curtain is included for added privacy.
4. How much does the Brinkley I 235 cost?
The MSRP is around $73,183. Actual prices vary by dealer and location. At Bish’s RV, you can click “Get Lowest Price” on our website to see real-time pricing.
5. Does the Brinkley I 235 come with solar?
Yes, it includes a factory-installed 200-watt solar panel and a 3,000W inverter. That means it’s ready for some off-grid camping right out of the gate.
6. What size is the bed in the Brinkley I 235?
It comes with an Olympic queen bed, which measures 66 inches wide by 80 inches long. That’s wider than a standard RV queen.
7. Is the Brinkley I 235 good for boondocking?
Yes. With solar power, a large fresh water tank, and a heated enclosed underbelly, the I 235 is well-equipped for dry camping or off-grid trips.
