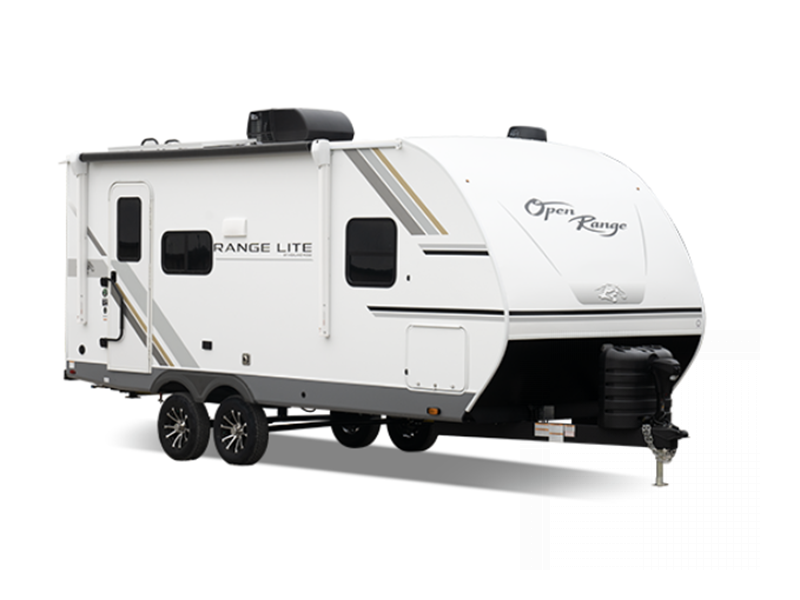

The TuffShell fiberglass walls make these Highland Ridge RV Range Lite travel trailers lightweight and easy to tow! The flush floor slides with residential vinyl flooring create more interior space and are easy to maintain.



You can expect to find durability with the PVC roofing membrane and smart storage with the oversized pass-through storage with motion lighting. Self adjusting electric brakes ensure your unit will stop when you stop. The mandatory Customer Convenience package adds extra features like a pop up wireless and USB charger in the bedroom, an entrance door with screen door to keep the bugs out while bringing in fresh air, and a molded front cap with LED lighting and stoneguard protection. You'll also appreciate the Xtend Solar I Package that comes standard and includes a 200 watt solar panel with a 30 amp solar controller for off-grid capabilities.



These Highland Ridge RV Range Light travel trailers are ready for adventure whenever you are!

  • Range Lite 262RL

    Range Lite 262RL Floorplan Image

    Take a Virtual Tour

    Highland Ridge RV Range Lite travel trailer 262RL highlights: Dual Entry doors ... more about Range Lite 262RL

    Specifications

    Sleeps 6
    Slides 1
    Length 31 ft 7 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft 2 in
    Int Height 6 ft 9 in
    Hitch Weight 905 lbs
    GVWR 7250 lbs
    Dry Weight 6120 lbs
    Cargo Capacity 1130 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 29 gals
    Black Water Capacity 29 gals
    Tire Size ST205/75R14'D
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lb
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR Smart HDTV
    Awning Info 21' Power with LED Lighting
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard

    Similar Floorplans

  • Range Lite 189RG

    Range Lite 189RG Floorplan Image

    Take a Virtual Tour

    Highland Ridge RV Range Lite travel trailer 189RG highlights: Rear Corner Bath ... more about Range Lite 189RG

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 25 ft 2 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Hitch Weight 520 lbs
    GVWR 6400 lbs
    Dry Weight 4915 lbs
    Cargo Capacity 1485 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 29 gals
    Black Water Capacity 29 gals
    Tire Size ST205/75R14D
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR Smart HDTV
    Awning Info 16' Power w/LED Lighting
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard

    Similar Floorplans

  • Range Lite 212FB

    Range Lite 212FB Floorplan Image

    Take a Virtual Tour

    Highland Ridge RV Range Lite travel trailer 212FB highlights: L-Sofa with a ... more about Range Lite 212FB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 23 ft 3 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Hitch Weight 490 lbs
    GVWR 6400 lbs
    Dry Weight 4845 lbs
    Cargo Capacity 1555 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 29 gals
    Black Water Capacity 29 gals
    Tire Size ST205/75R14'D
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lb
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR Smart HDTV
    Awning Info 12' Power with LED Lighting
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius

    Similar Floorplans

  • Range Lite 225CK

    Range Lite 225CK Floorplan Image

    Take a Virtual Tour

    Highland Ridge Range Lite travel trailer 225CK highlights: Front Queen Bed Rear ... more about Range Lite 225CK

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 27 ft 4 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft
    Int Height 6 ft 10 in
    Hitch Weight 530 lbs
    GVWR 6500 lbs
    Dry Weight 5085 lbs
    Cargo Capacity 1415 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 29 gals
    Black Water Capacity 29 gals
    Tire Size ST205/75R14'D
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR Smart HDTV
    Awning Info 19' Power with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo

    Similar Floorplans

  • Range Lite 233ML

    Range Lite 233ML Floorplan Image

    Take a Virtual Tour

    Highland Ride RV Range Lite travel trailer 233ML highlights: Rear Kitchen Front ... more about Range Lite 233ML

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 29 ft 7 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Hitch Weight 680 lbs
    GVWR 7250 lbs
    Dry Weight 5885 lbs
    Cargo Capacity 1365 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 58 gals
    Black Water Capacity 29 gals
    Tire Size ST205/75R14D
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR Smart HDTV
    Awning Info 21' Power w/LED Lighting
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard

    Similar Floorplans

  • Range Lite 241BH

    Range Lite 241BH Floorplan Image

    Take a Virtual Tour

    Highland Ridge RV Range Lite travel trailer 241BH highlights: Bunk Beds Outside ... more about Range Lite 241BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 1
    Length 29 ft 8 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Hitch Weight 715 lbs
    GVWR 7400 lbs
    Dry Weight 5800 lbs
    Cargo Capacity 1600 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 58 gals
    Black Water Capacity 29 gals
    Tire Size ST205/75R14'D
    Furnace BTU 35000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lb
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR Smart HDTV
    Awning Info 18' Power with LED Lighting
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo

    Similar Floorplans

  • Range Lite 242RL

    Range Lite 242RL Floorplan Image

    Take a Virtual Tour

    Highland Ridge RV Range Lite travel trailer 242RL highlights: Rear Living Area ... more about Range Lite 242RL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 28 ft 10 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Hitch Weight 685 lbs
    GVWR 7000 lbs
    Dry Weight 5545 lbs
    Cargo Capacity 1455 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 29 gals
    Black Water Capacity 29 gals
    Tire Size ST205/75R14'D
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lb
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR Smart HDTV
    Awning Info 18' Power with LED Lighting
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius

    Similar Floorplans

  • Range Lite 252RB

    Range Lite 252RB Floorplan Image

    Take a Virtual Tour

    Highland Ridge RV Range Lite travel trailer 252RB highlights: Dual Entry Doors ... more about Range Lite 252RB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 1
    Length 30 ft 9 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Hitch Weight 755 lbs
    GVWR 7500 lbs
    Dry Weight 6185 lbs
    Cargo Capacity 1315 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 58 gals
    Black Water Capacity 29 gals
    Tire Size ST205/75R14'D
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lb
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR Smart HDTV
    Awning Info 20' Power with LED Lighting
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius

    Similar Floorplans

  • Range Lite 261BH

    Range Lite 261BH Floorplan Image

    Take a Virtual Tour

    Highland Ridge RV Range Lite travel trailer 261BH highlights: Bunk Beds Outside ... more about Range Lite 261BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 1
    Length 30 ft 8 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Hitch Weight 805 lbs
    GVWR 7500 lbs
    Dry Weight 5900 lbs
    Cargo Capacity 1600 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 29 gals
    Black Water Capacity 29 gals
    Tire Size ST205/75R14'D
    Furnace BTU 35000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lb
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR Smart HDTV
    Awning Info 20' 6" Power with LED Lighting
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo

    Similar Floorplans

Range Lite Features:

Standard Features (2024)



Exterior Equipment

  • 5/8" main floor decking
  • Door side spray port
  • Exterior grill/griddle quick connect port
  • Flexible LP lines
  • Foldable grab handle
  • Fully-walkable roof
  • In-frame battery rack
  • Magnetic baggage door catches

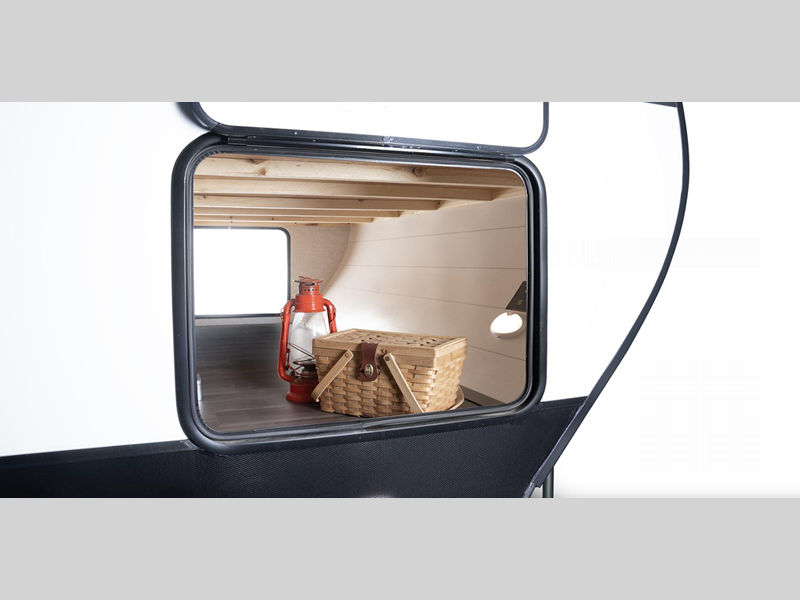

  • Oversized pass-through storage with motion lighting
  • PVC roofing membrane (limited lifetime warranty)
  • Rain guttering with molded drip spouts
  • Rear observation camera prep
  • Safety bumper with drain hose carrier and end caps
  • Self-adjusting electric brakes
  • Side camera prep marker lights
  • Solid swing-down entry steps
  • Thermal Seal- enclosed, insulated and heated underbelly with fully insulated roof with a PVC roofing membrane
  • Tinted safety-glass windows throughout
  • TuffShell™ - vacuum bonded laminated construction, reinforced with heavy-duty fiberglass and welded aluminum frames
  • Xtend Solar I Package (200 watt solar panel with 30 amp solar controller)

Interior Equipment

  • 10 cu. ft. 12V refrigerator
  • 5G antenna

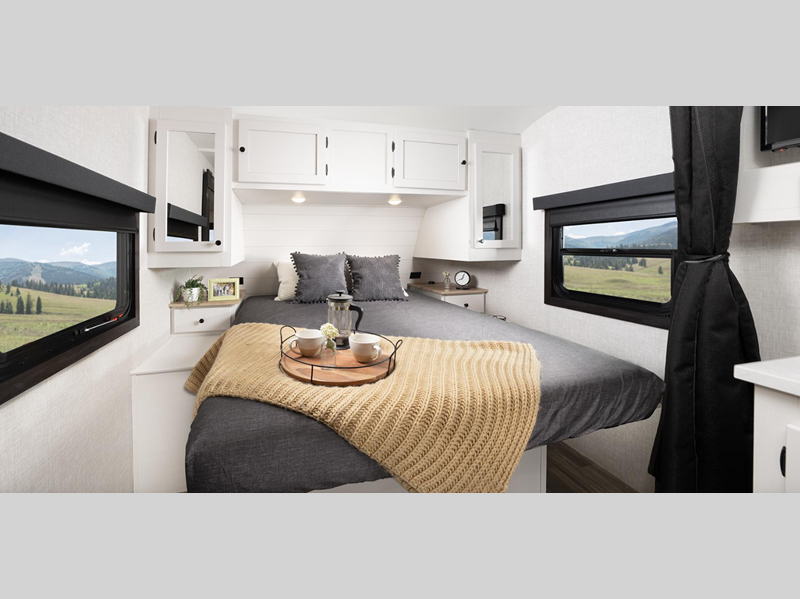

  • 60" x 80" residential queen bed with storage drawers below
  • 75 lb. ball bearing drawer guides
  • 81" interior height
  • Cable and satellite prep
  • Electrical outlets and USB ports in master bedroom
  • Flush floor slides with residential vinyl flooring
  • Hardwood cabinet doors
  • Kitchen sink covers
  • LED interior lighting
  • Medicine cabinet
  • Powered 12V bathroom vent
  • Range hood
  • Residential high-rise faucet
  • Roller blackout night shades
  • Soft closing foot flush toilet
  • Stainless steel single basin under-mount kitchen sink
  • Tri-fold sofa (select models)

Customer Convenience Package (Mandatory)

  • 15,000 BTU roof mounted A/C
  • 2-30 lb. LP bottles
  • 3-burner range with 17" oven and flush mount glass cover
  • Dome style digital TV antenna with Wi-Fi prep
  • Enclosed exterior docking station with black tank flush
  • Entrance door with screen door, window and magnet door catch
  • EZ-store detachable cord
  • Gas/electric water heater
  • JBL® Aura Cube stereo with Bluetooth® and miZONE™ technology
  • JBL® Premium indoor and outdoor multizone speakers
  • Microwave
  • Molded front cap with LED lighting and stoneguard protection
  • Nitrogen filled radial tires with aluminum rims
  • Pop up wireless and USB charger in bedroom
  • Power awning with LED lighting
  • Power tongue jack
  • Pressed membrane countertops
  • Rear roof access ladder
  • Smart HDTV

Options

  • Xtend Solar II Package (2-200 watt solar panels with 30 amp solar controller and 1800 watt inverter) (Replaces standard Xtend Solar I Package)
  • 17" Griddle with bumper bracket
  • 50 amp service with 2nd A/C (252RB, 262RL, 282RL)
  • Electric stabilizer jacks
  • Free standing table with 2 chairs and bench (N/A 212FB, 225CK)
  • Free standing table with 4 chairs (N/A 212FB, 225CK)
  • Theater seating ipo L-sofa (212FB only)
  • Theater seating ipo tri-fold sofa (N/A 241BH)
  • Wi-Fi router

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Highland Ridge RV Logo

For us, it’s all about solving the problems RVers encounter every day, building the RVer’s RV. Through deliberate design, year after year, we come up with creative RV solutions that make time at camp a little easier, and a lot more comfortable. You’ll enjoy time spent in your home away from home and own the outdoors with a Highland Ridge RV.



It all started in March of 2014 when Jayco purchased assets of Open Range RV. Today, Highland Ridge RV is a subsidiary of Jayco and operates its own manufacturing facilities, service and warranty group, sales team, management and leadership teams. We’re proud to be associated with a company that shares our same commitment to great quality, integrity, vision and values.



The Highland Assurance is our commitment to quality and deliberate design. It’s building RVs that are rooted in the experiences and suggestions of RVers who know what they like, what works and what doesn’t. Most importantly, it’s about assuring you an enjoyable and trouble-free experience. From the factory to the campground, we’ve got your back.



We want your trade
Value Your Trade Close

Tell us about the RV you currently own






(Is there anything else we should consider when evaluating the best value for your RV?)

* Required field

Your Contact Information




(Easily unsubscribe at any time.)
