What happens when a manufacturer actually listens to your feedback? You get something like the Brinkley Model Z 3420.
This isn’t just a new floor plan — it’s the smarter, more functional follow-up to the Z 3400.
Brinkley flipped the layout, moved the windows to the camp side, kept the rear patio, and cranked up the storage like they were playing RV Tetris. It’s clear they weren’t just aiming for different — they were aiming for better.
If you want a fifth wheel built for campers who need room to live and features that actually make life easier, the Z 3420 is worth a serious look.
Let’s take a closer look under the hood (well… under the roof).
Josh the RV Nerd tours the Z 3420 and explains how Brinkley listened and leveled up.
TABLE OF CONTENTS
Want to See the Floor Plan and Price of a Brinkley Model Z 3420?
What makes the Brinkley Model Z 3420 Unique?

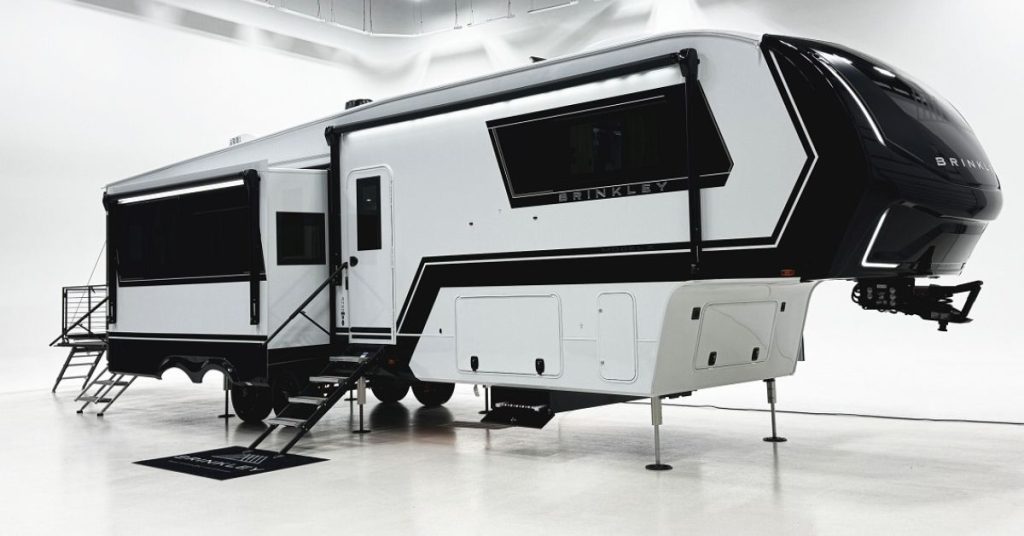

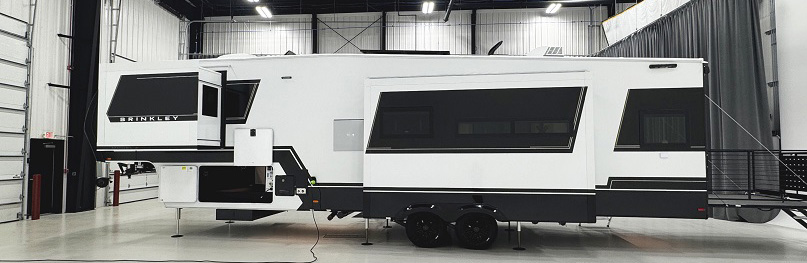

The Z 3420’s rear patio gives you a true outdoor living space — no garage, just room to relax.
The Brinkley Z 3420 isn’t a brand-new invention — it’s a thoughtful remix of their popular 3400 model, rebuilt based on real camper feedback.
The most noticeable change? They flipped the living and kitchen areas to put the windows on the camp side — so you’re not staring at your neighbor’s sewer hose while you drink your morning coffee.
They also kept the rear patio and added a one-touch “weather wall” you can drop down to block wind or rain, giving you a usable three-season hangout space.
A few more things Brinkley got right:
- 12V fridge in the rear kitchen, accessible while traveling
- A huge amount of storage — close to 3,000 lbs of cargo capacity

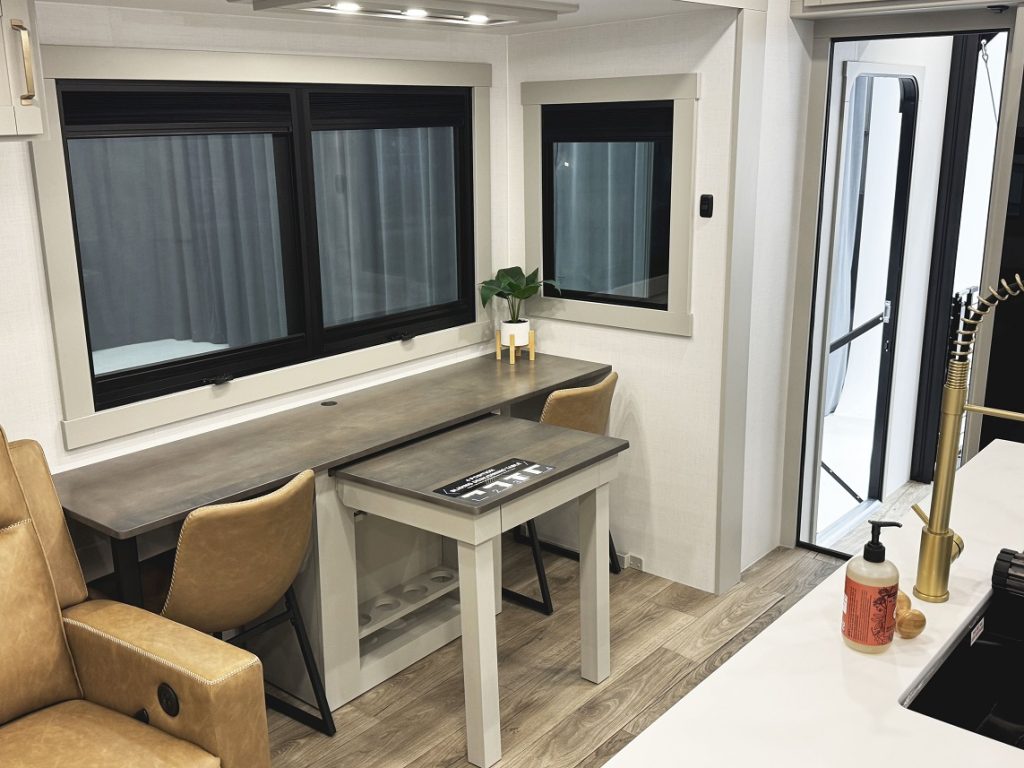

- A redesigned dining/desk bar setup with built-in power for remote workers or guests
- Camp-side windows throughout the main living area
- An optional rear entry with lightweight, skirt-mounted steps that stow inside a lockbox
If you liked the 3400 but wanted a better view, easier storage access, or more airflow — the 3420 fixes those issues without losing the Brinkley feel.
Brinkley made use of every inch—drawers, cabinets, and hidden storage throughout the interior.
Brinkley Z 3420 Specs and Dimensions

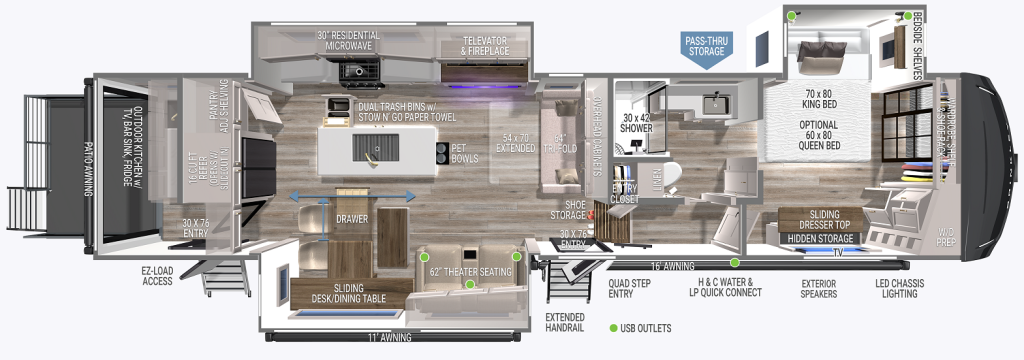

Brinkley Z 3420 floor plan: camp-side windows, rear patio, and room to move.
Brinkley Z 3420 Specs and Dimensions
Here’s a quick look at the key specs and dimensions of the Brinkley Z 3420 Fifth wheel. These numbers can help you decide if it fits your tow vehicle, campsite, and how you like to travel.
| Feature | Specs |
|---|---|
| Exterior Length | 39′ 11″ |
| Exterior Width | 8′ |
| Exterior Height (with A/C) | 14′ 4″ |
| Ceiling Height | 6′ 9″ |
| Hitch Weight | 2,612 lbs* |
| Dry Weight | 14,794 lbs* |
| GVWR (Max Weight) | 17,695 lbs* |
| Max Cargo Capacity | 2.901 lbs* |
| Fresh Water Tank | 75 gal |
| Gray Water Tank | 90 + 40 gal |
| Black Water Tank | 45 gal |
| Solar Power | 370W factory-installed panel |
| Inverter | Prepped (and Lithium Ready) |
*Prototype specs shown. Final production weights may vary slightly.
What Does the Brinkley Model Z 3420 Cost?
The MSRP for the Brinkley Model Z 3420 is set at $133,656.
This is the manufacturer’s suggested price — but it’s not always what you’ll actually pay.
At Bish’s RV and other Brinkley dealers, we’re not allowed to advertise the sale price online due to Brinkley’s pricing policy.
But you can still see the actual sale price — just click the “Get Lowest Price” button on our site to unlock it.
Tap “Get Lowest Price” to check availability and unlock your real price.
Typical Price Range for the Brinkley Z 3420:
Based on what we’ve seen across the industry, most Brinkley Z 3420s will fall between $100,000 and $130,000, depending on location, dealer pricing, and optional upgrades.
We can’t show our sale price online due to Brinkley’s pricing policy — but if you click “Get Lowest Price,” you’ll see why so many shoppers start their search at Bish’s.
(Prices vary by dealer and region. MSRP shown is for base configuration.)

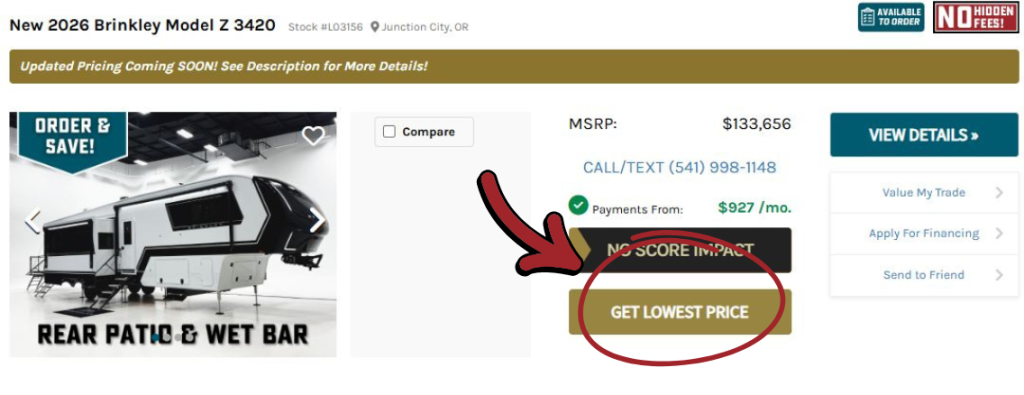

How to See the Lowest Price on a Brinkley Model Z 3420
Due to Brinkley’s pricing policy, dealers can’t show the sale price online — but you can still access it.
Click the button below to head to our inventory page.
Once you’re there, tap “Get Lowest Price” to unlock real-time pricing from Bish’s RV.

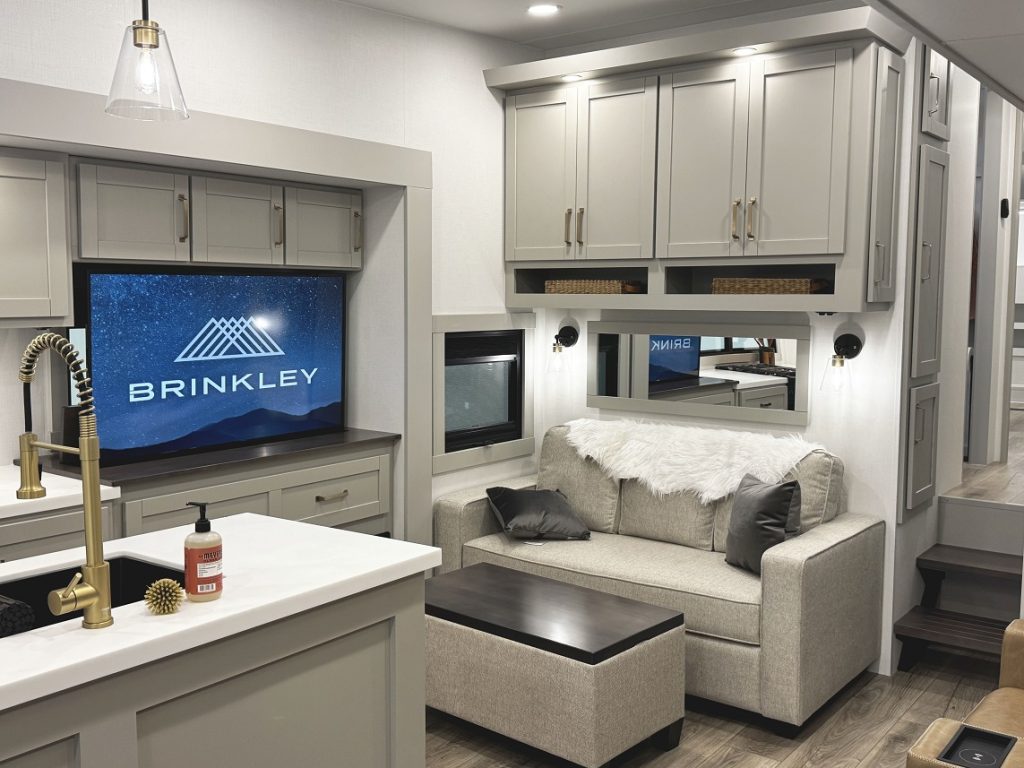

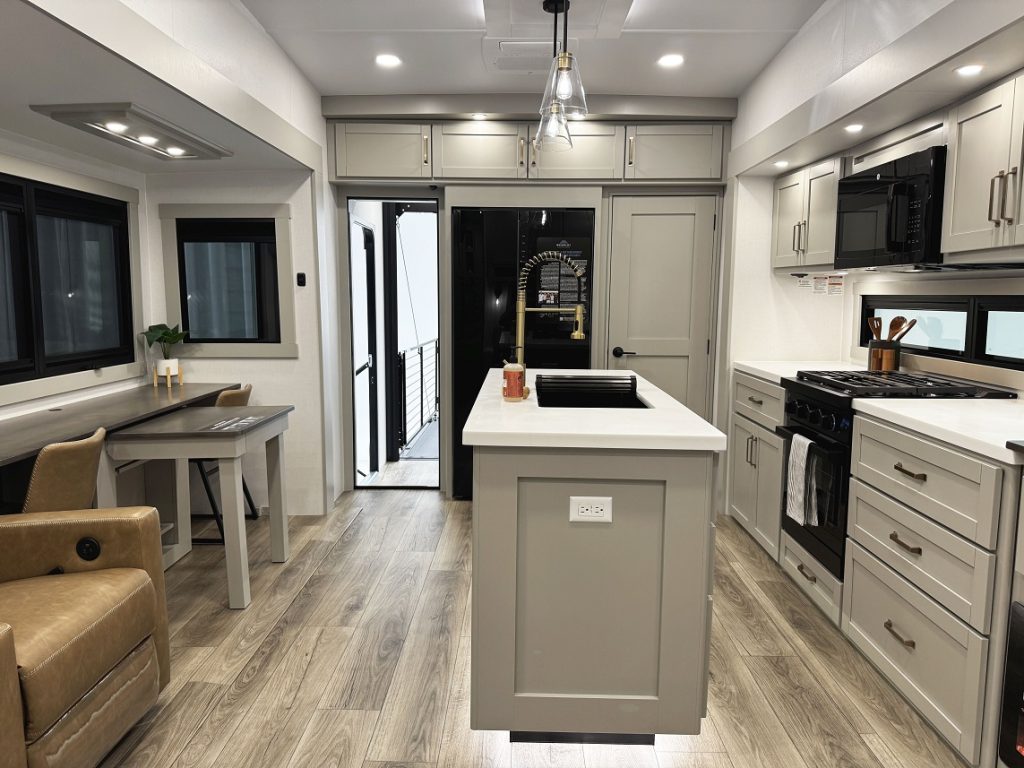

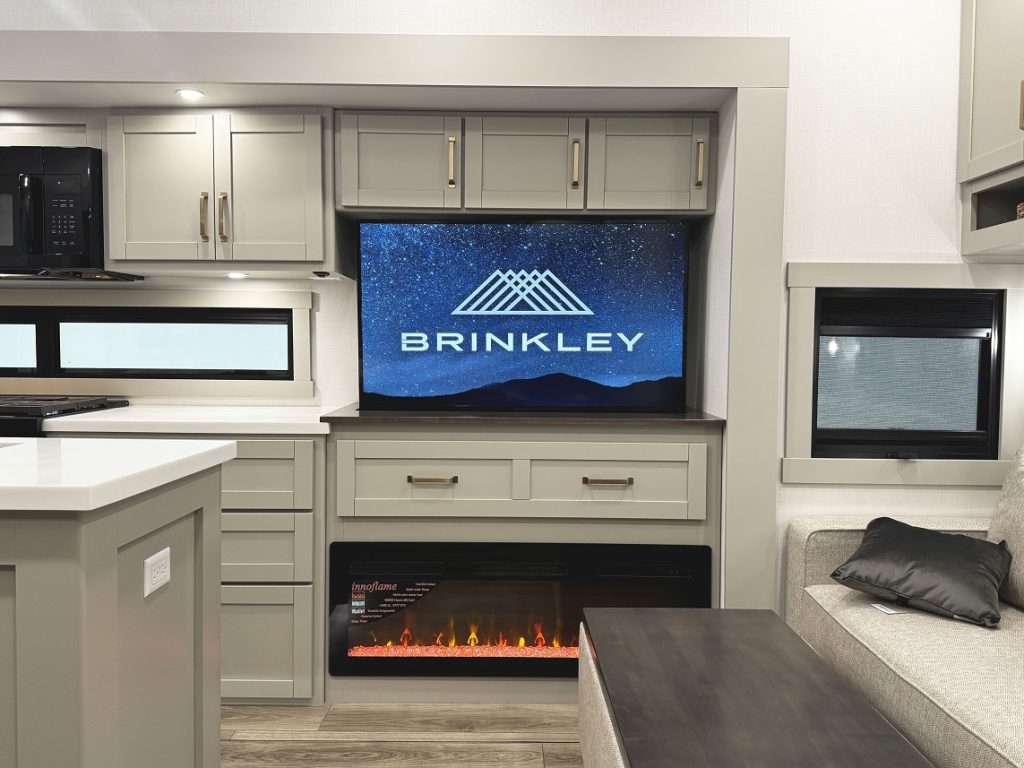

What Are the Interior Features of the Brinkley Model Z 3420?

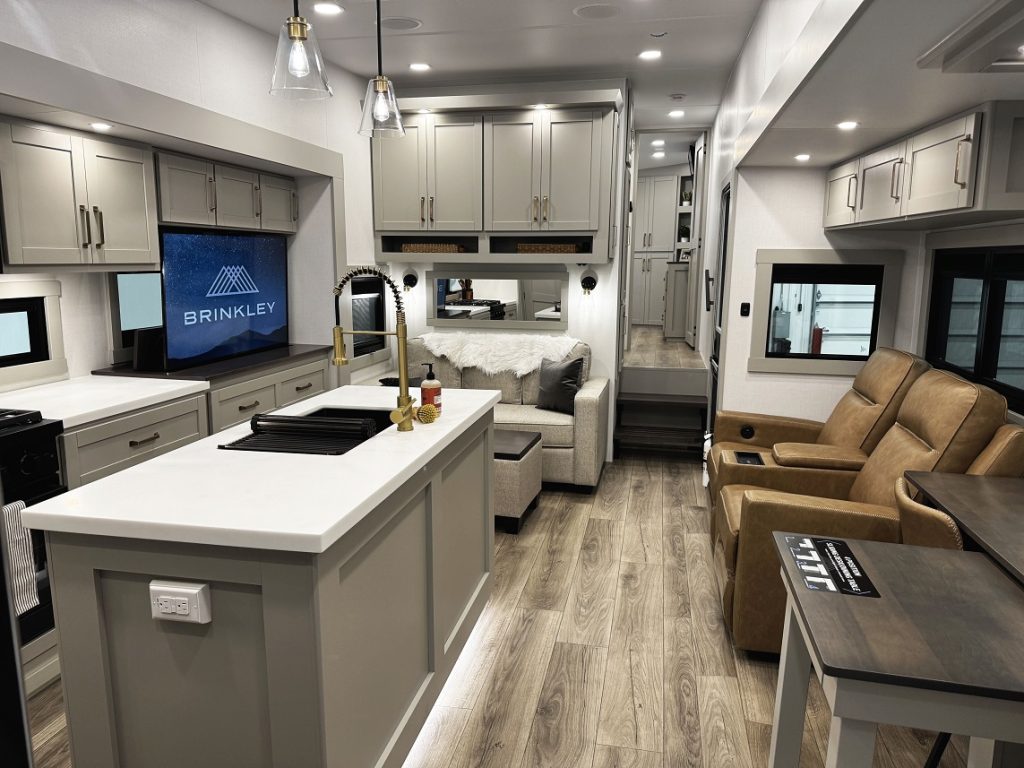

Inside the Brinkley Z 3420, it’s less “typical fifth wheel” and more “why doesn’t every RV do this?”
The living space has been flipped to put the big windows and seating area on the camp side — so your morning coffee view is the trees, not your neighbor’s sewer hose.
The rear patio and wet bar turn the back of your RV into a great spot to kick back and relax, and with the one-touch “weather wall,” you don’t have to pack it in just because it’s drizzling.
You also get two 18,000 BTU A/C units — one for the main living space and one for the bedroom — both with quiet, variable-speed compressors and built-in heat pumps. Translation: cool in the summer, warm in the fall, and no loud blasts of air every five minutes.

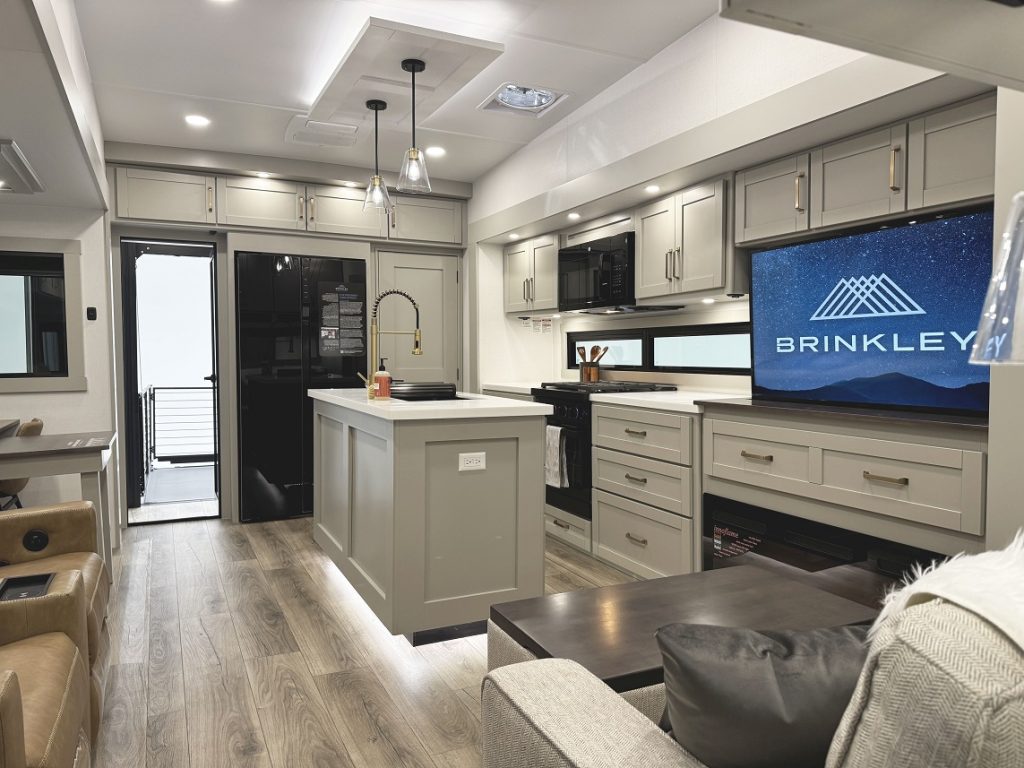

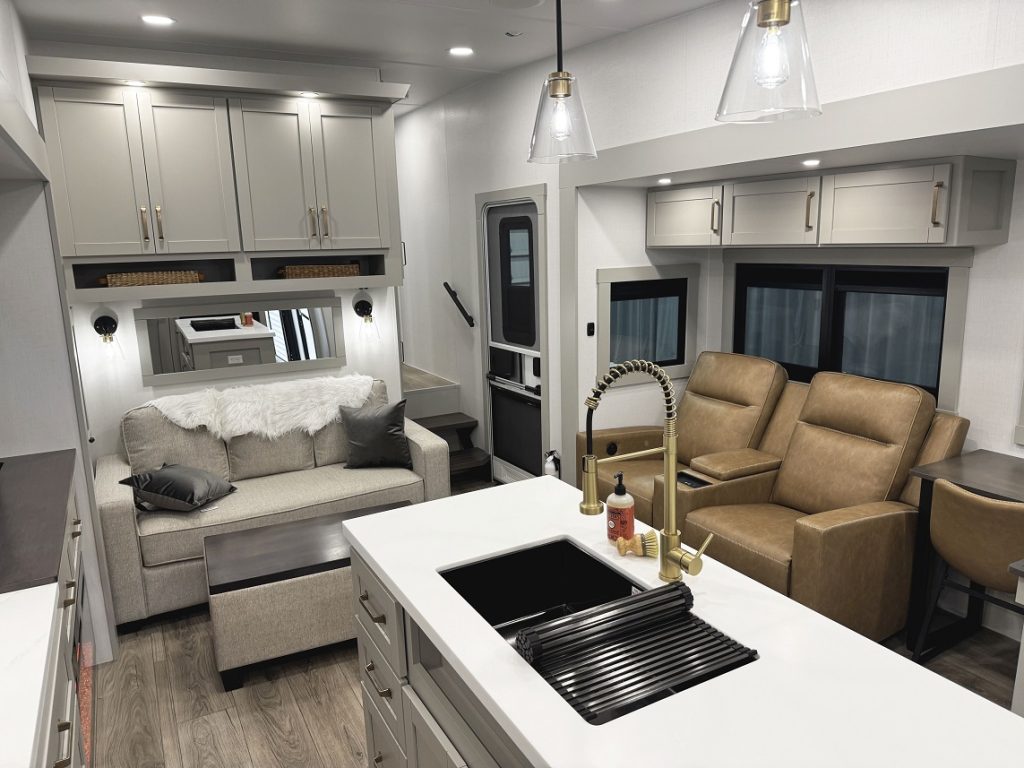

The kitchen is built for day-to day use — with solid surface counters, a huge island with trash storage, and hidden drawers and pantry space that make it feel more like a condo than a camper.
And yes, it’s Brinkley — so you still get soft-close drawers, dovetail construction, under-bed lighting, washer/dryer prep, and all the little touches you didn’t know you needed until now.
Brinkley Z 3420 Key Interior Features:
- Camp-side living room with large windows
- Rear patio and wet bar with 12V fridge (accessible while traveling)
- Two-zone A/C system with quiet variable-speed units and heat pumps
- Oversized island with solid surface counters and built-in wastebasket
- Soft-close drawers with dovetail construction

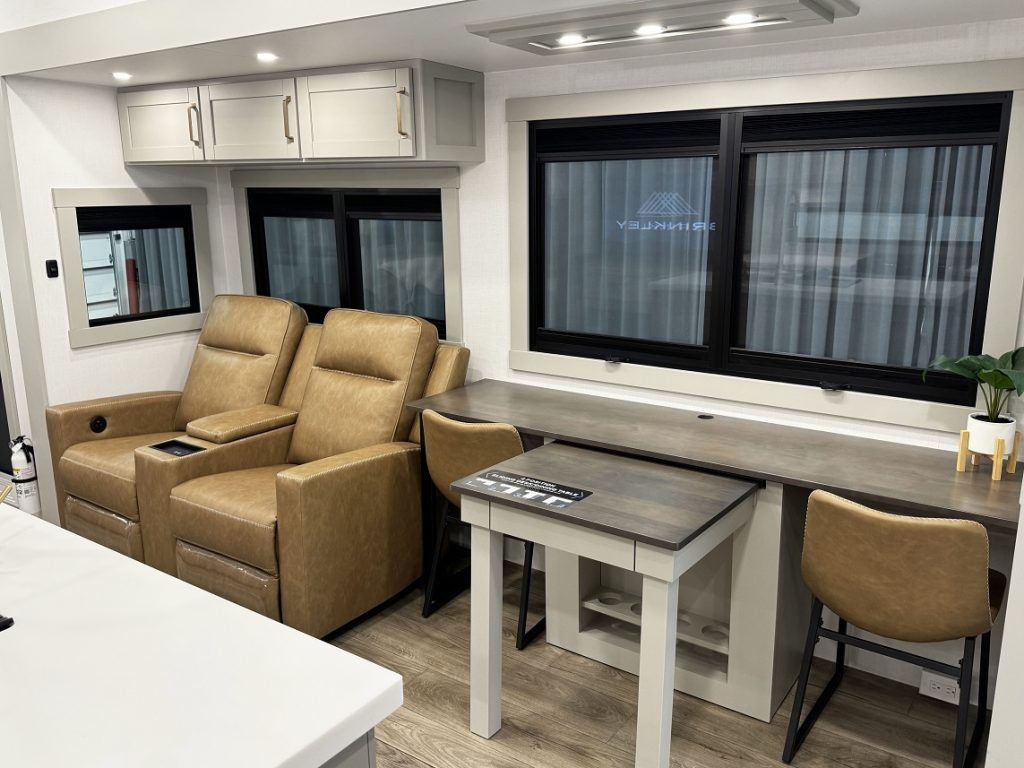

- Expandable desk/dining bar with hidden power access
- Hidden storage throughout kitchen, pantry, and bedroom
- Optional washer/dryer prep in the bedroom closet

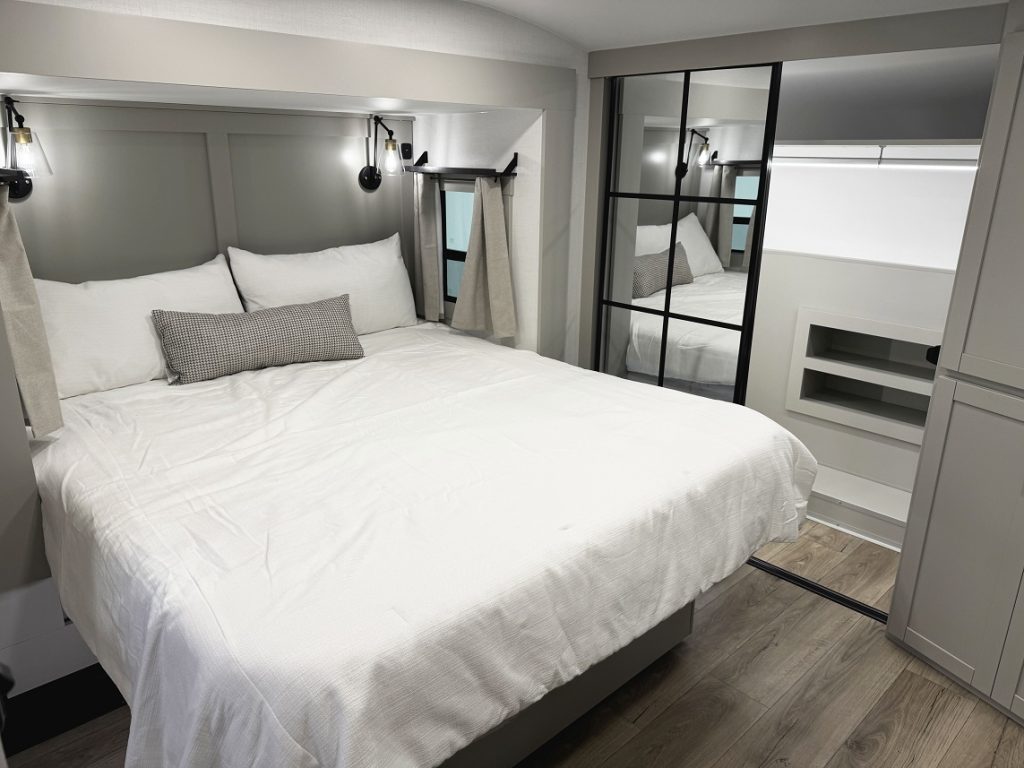

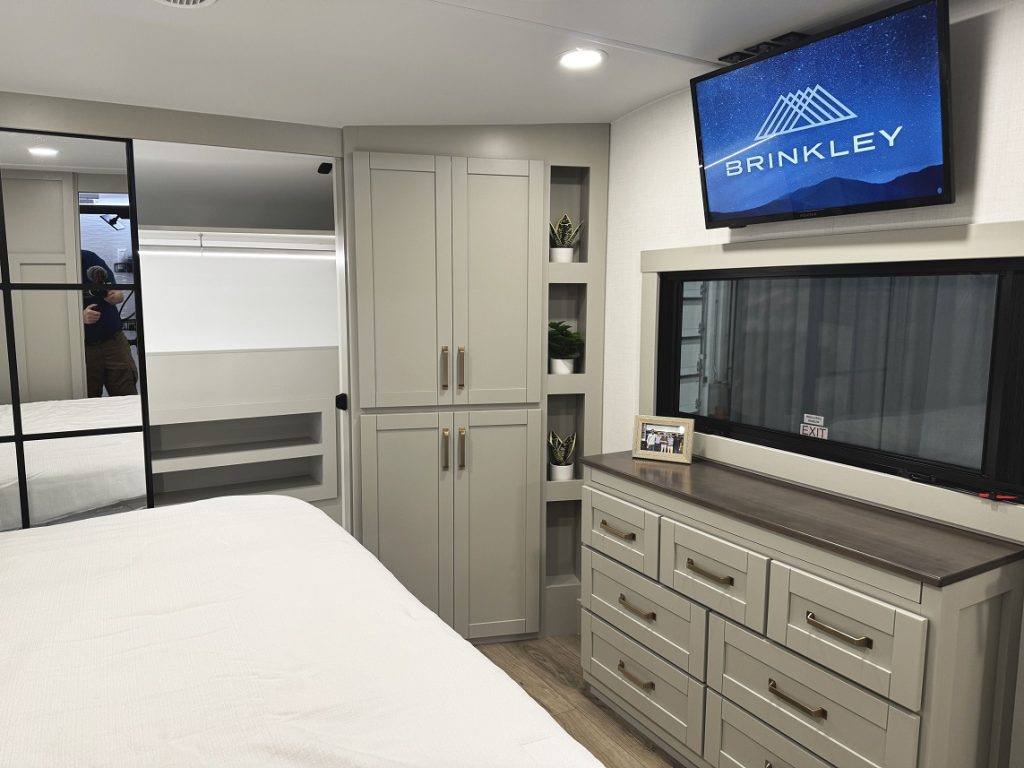

- RV king bed with motion-activated floor lighting

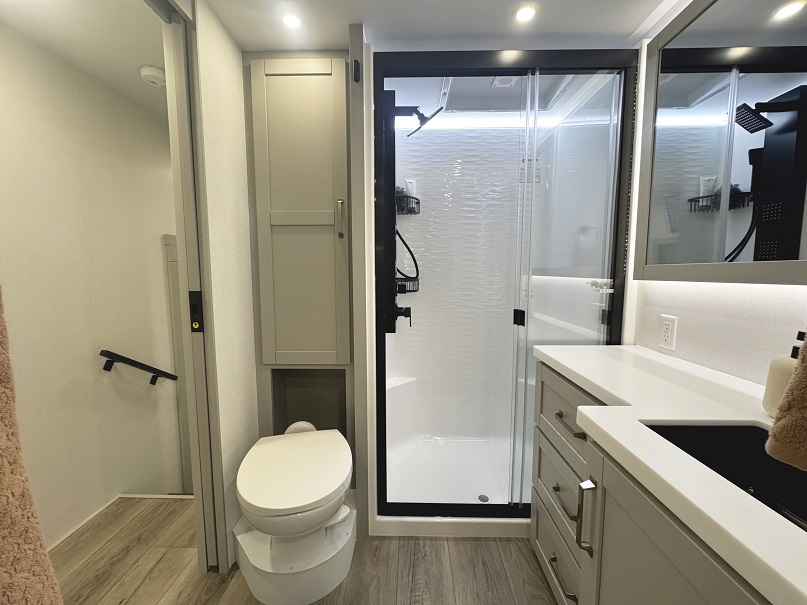

- Dual-entry bathroom with extra headroom and molded fiberglass shower
- Large vanity mirror with backlighting
- No floor vents in main living space or bathroom (aka: less to sweep)
If you’re the kind of camper who appreciates good design and hates wasted space, the Z 3420 might just be your new favorite floor plan.

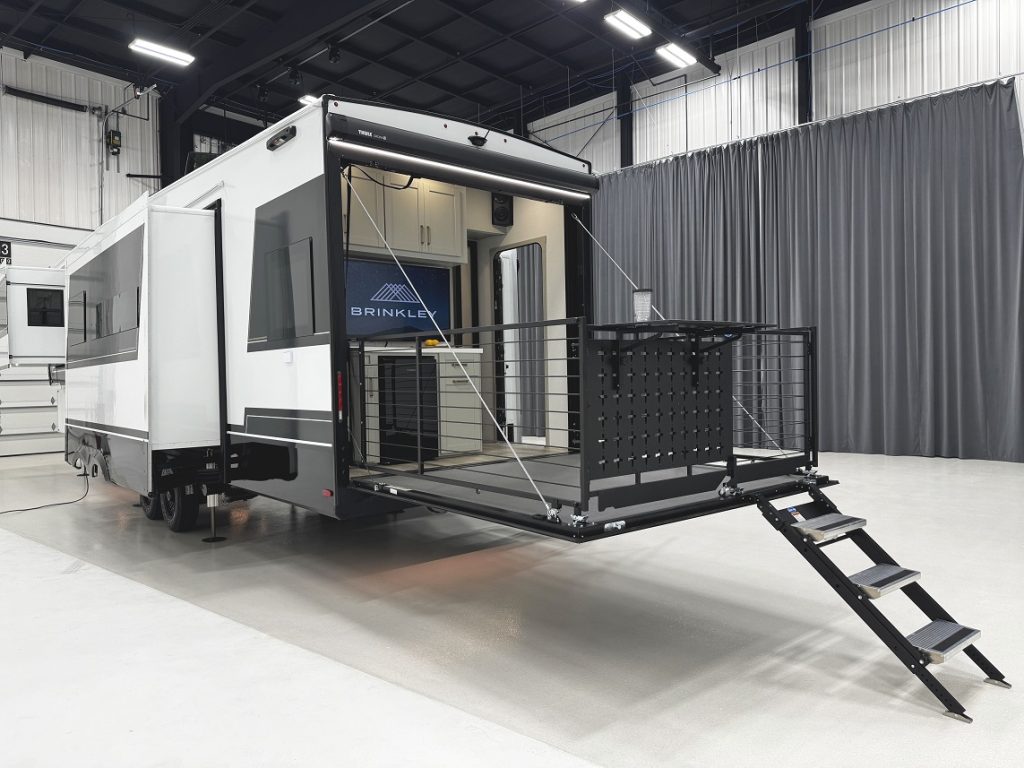

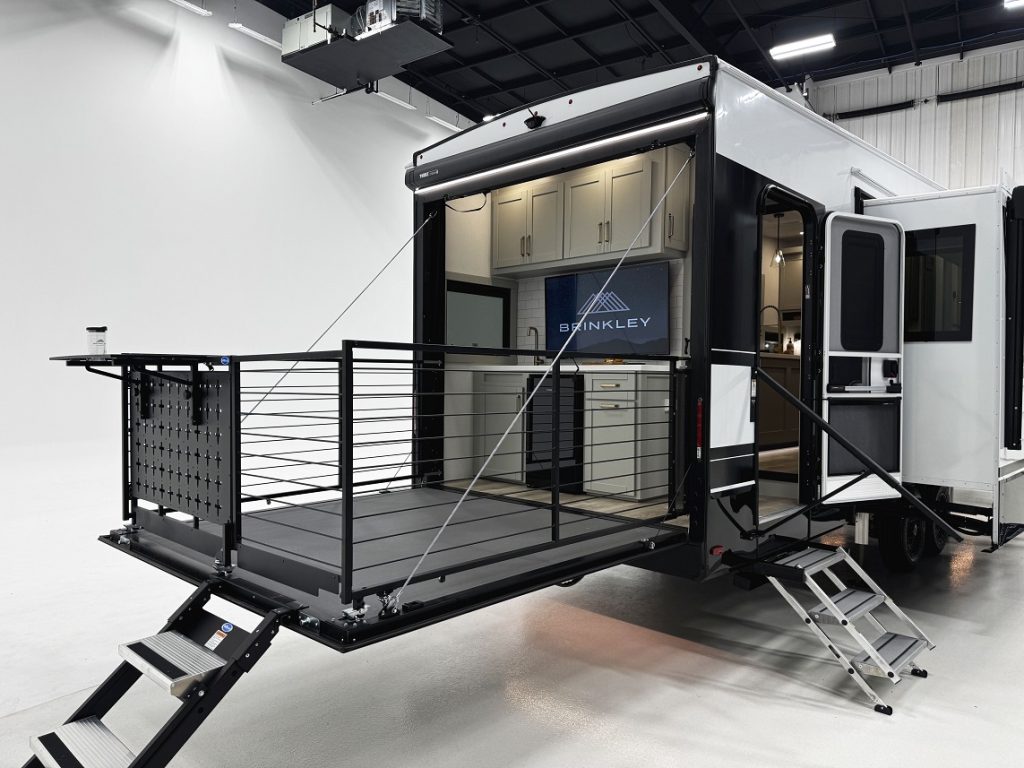

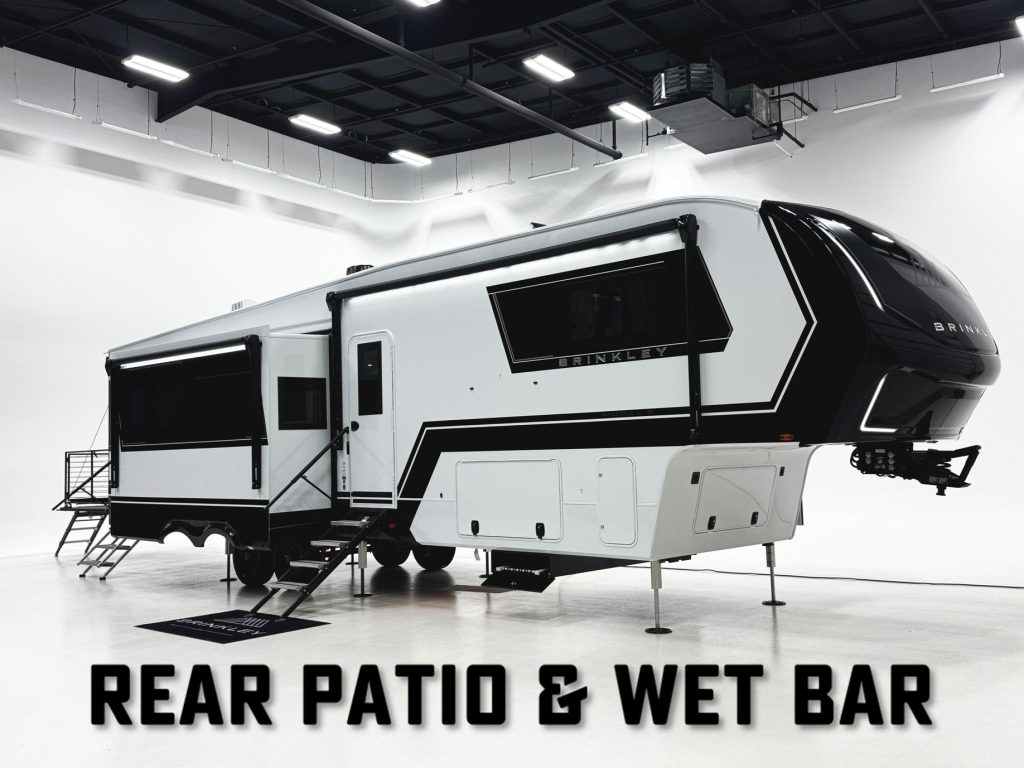

What’s So Great About the Rear Patio and Wet Bar on the Z 3420?
It’s not just a cool add-on — the Z 3420’s rear patio is one of the most functional and fun features in the whole floor plan.
Instead of wasting the back wall, Brinkley gave you a true three-season hangout space. With solid flooring, full railing, and a one-touch “weather wall” to block wind and rain, you can enjoy the outdoors even when the weather’s not ideal. Set up a couple chairs, cue the sunset, and you’ve got your own back porch on wheels.

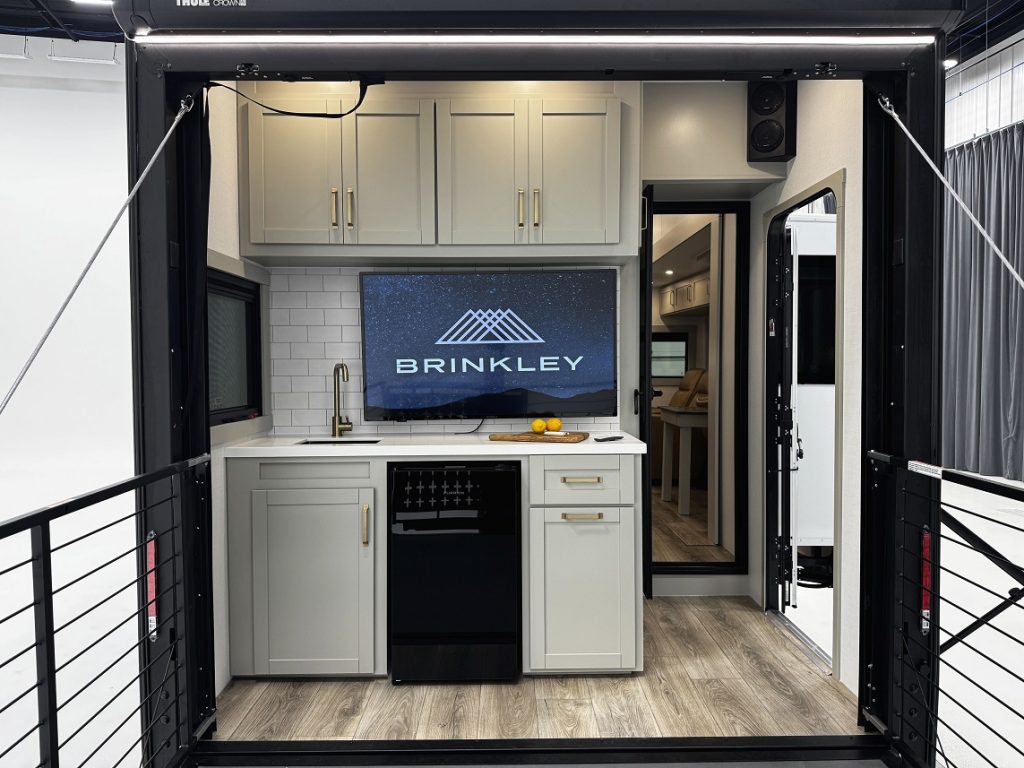

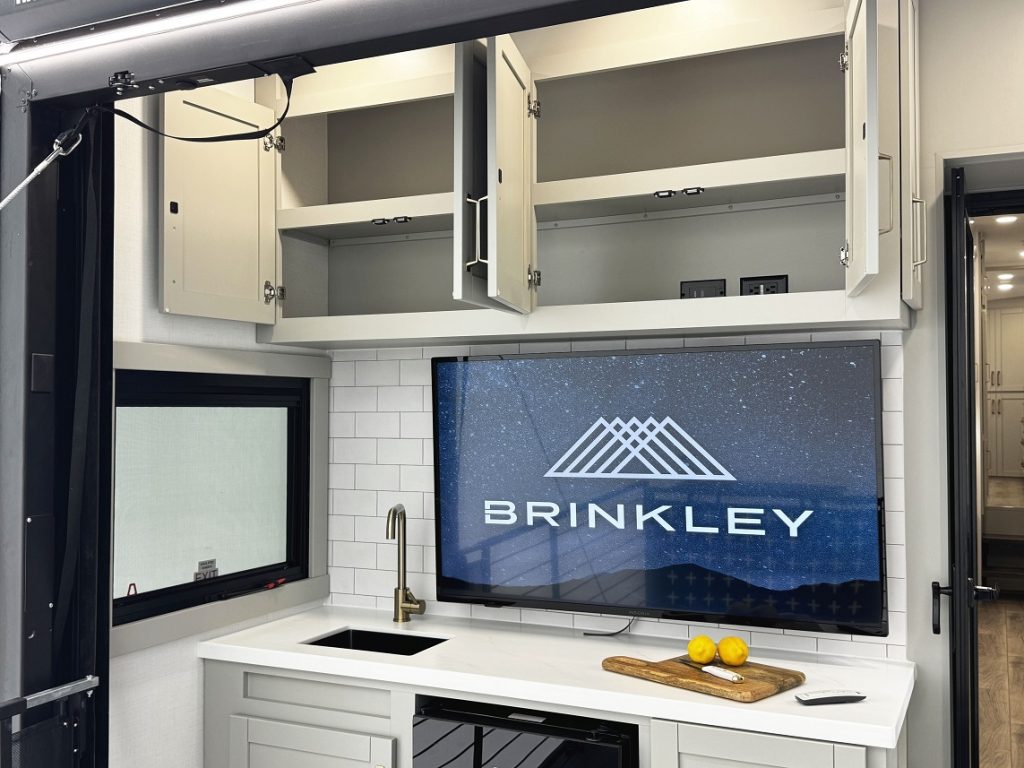

Just inside the door is a small wet bar with cabinet space, countertop, and a 12V fridge that stays powered while you travel.
You don’t have to head inside every time you want a drink or snack — just pop open the fridge and keep enjoying the patio.
Let the good times roll!
Rear Patio & Wet Bar Highlights:

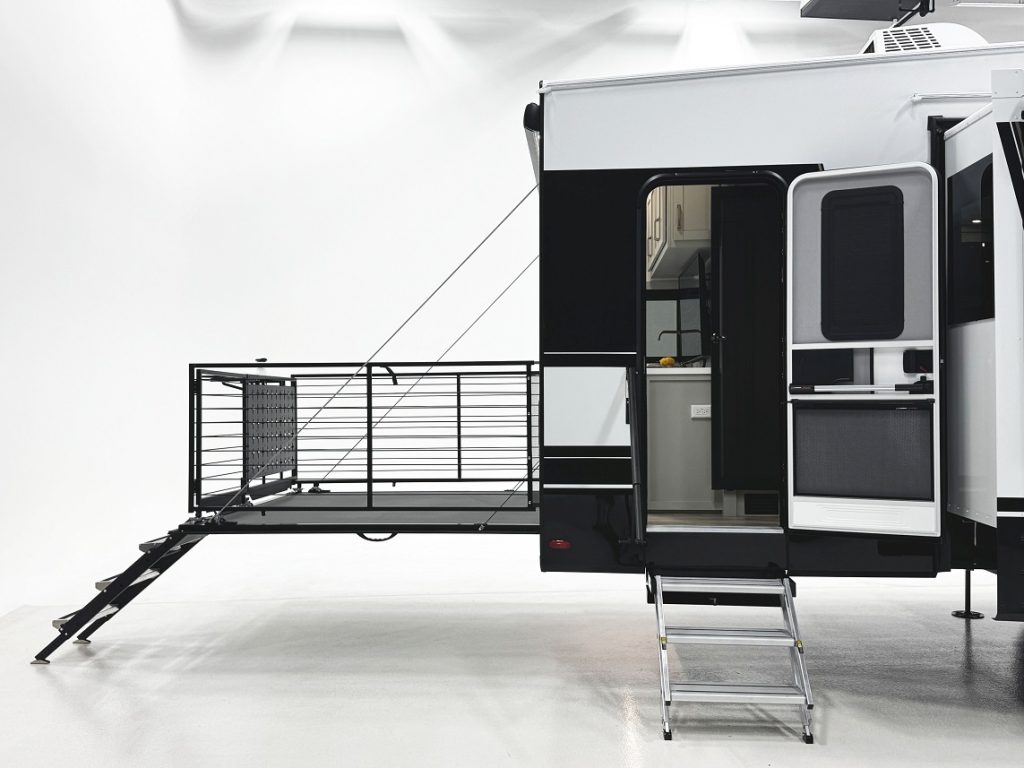

- Rear patio deck with railings and built-in access steps
- One-touch retractable weather wall for wind and rain protection
- 12V fridge accessible in transit (perfect for road-day snacks)
- Compact wet bar with storage and prep space
- Separate rear entry door from the patio

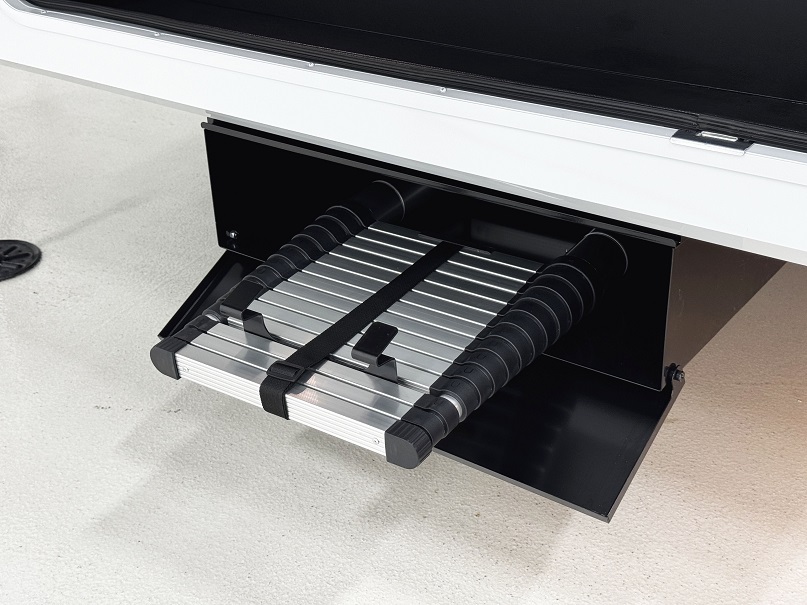

- Lightweight, skirt-mounted stairs that slide into a lockbox
- A real bonus room — not a toy hauler garage pretending to be one

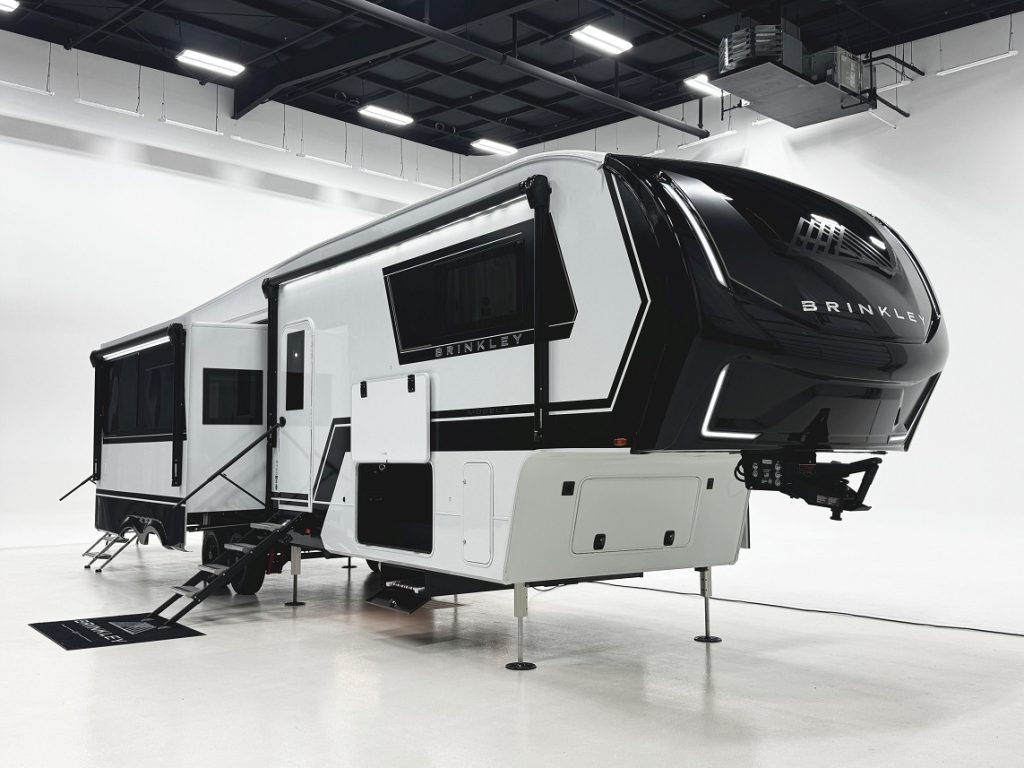

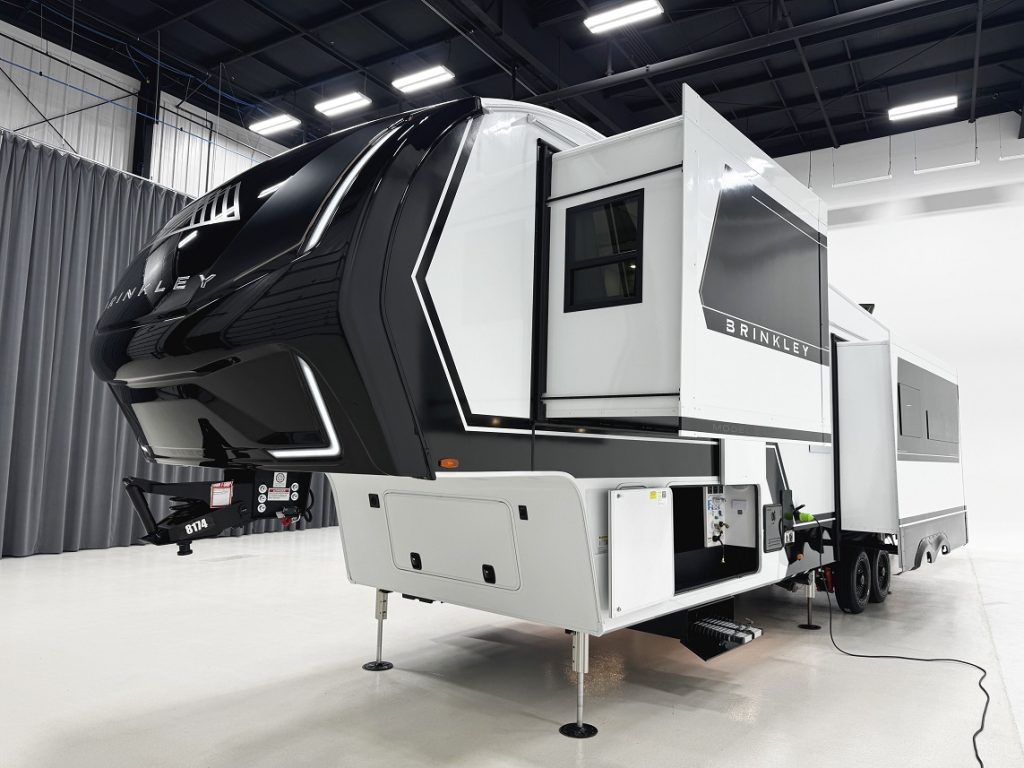

What Are the Exterior Features of the Brinkley Model Z 3420?

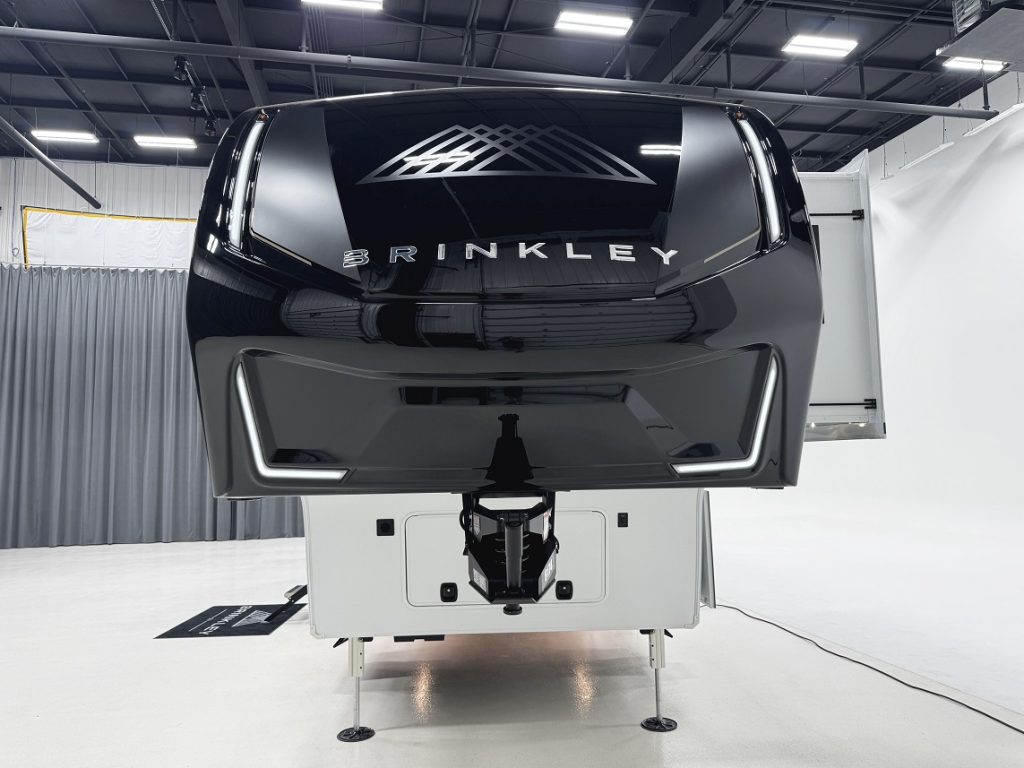

The outside of the Z 3420 is built like it’s meant to be used — a lot!
You get a painted aluminum exterior instead of standard fiberglass, which holds up better over time and is easier to repair if something goes sideways.
The heated, enclosed underbelly and radiant barrier insulation help extend your camping season, and the tankless water heater means long showers without the wait.
Brinkley also includes 200W of solar power and 3,000W inverter prep — giving you a head start on off-grid camping or just more flexibility when hookups aren’t available. You don’t have to build your boondocking setup from scratch.

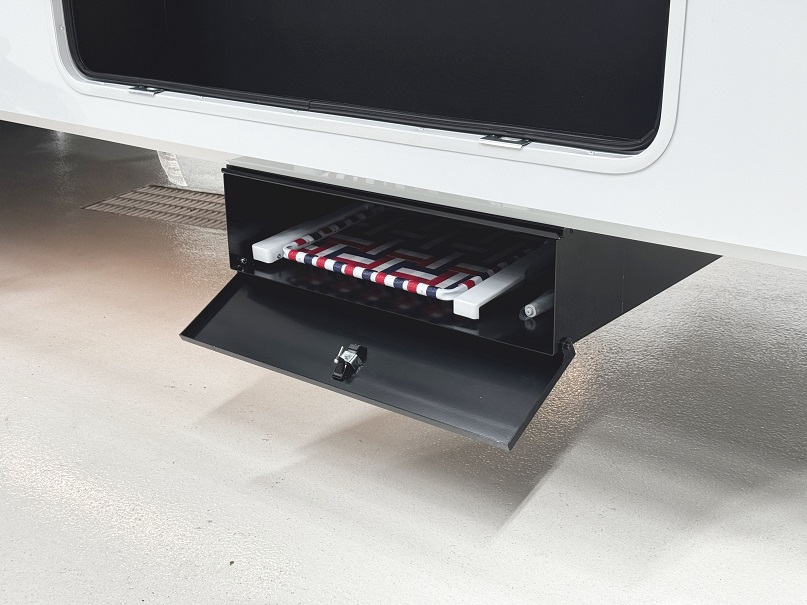

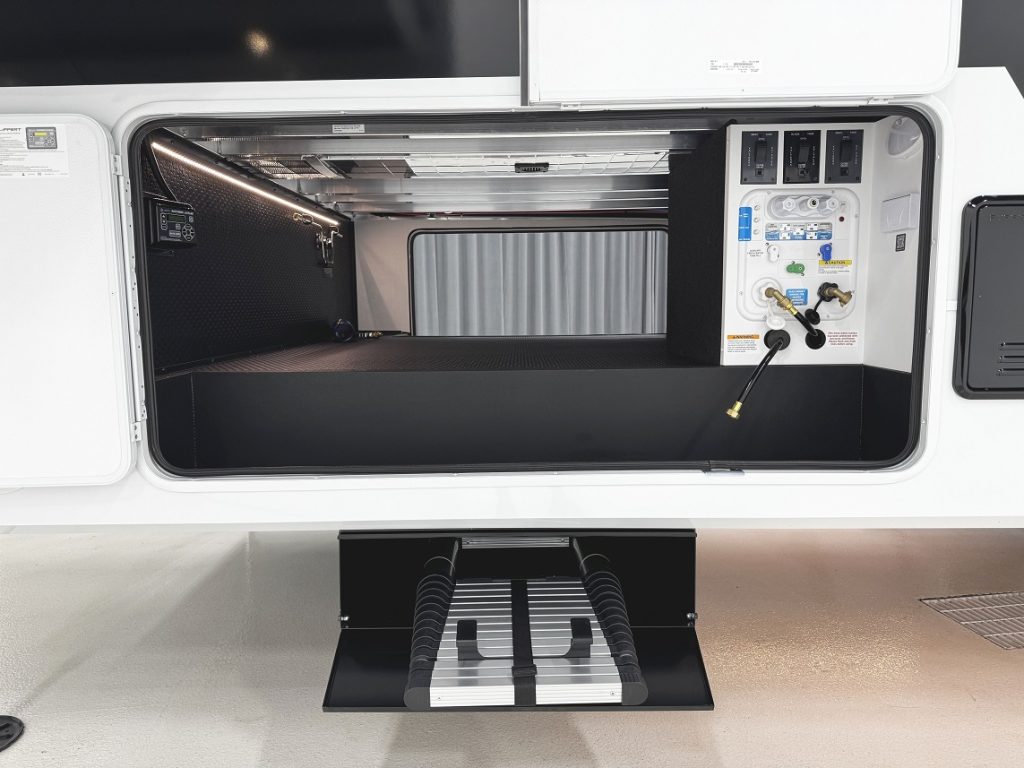

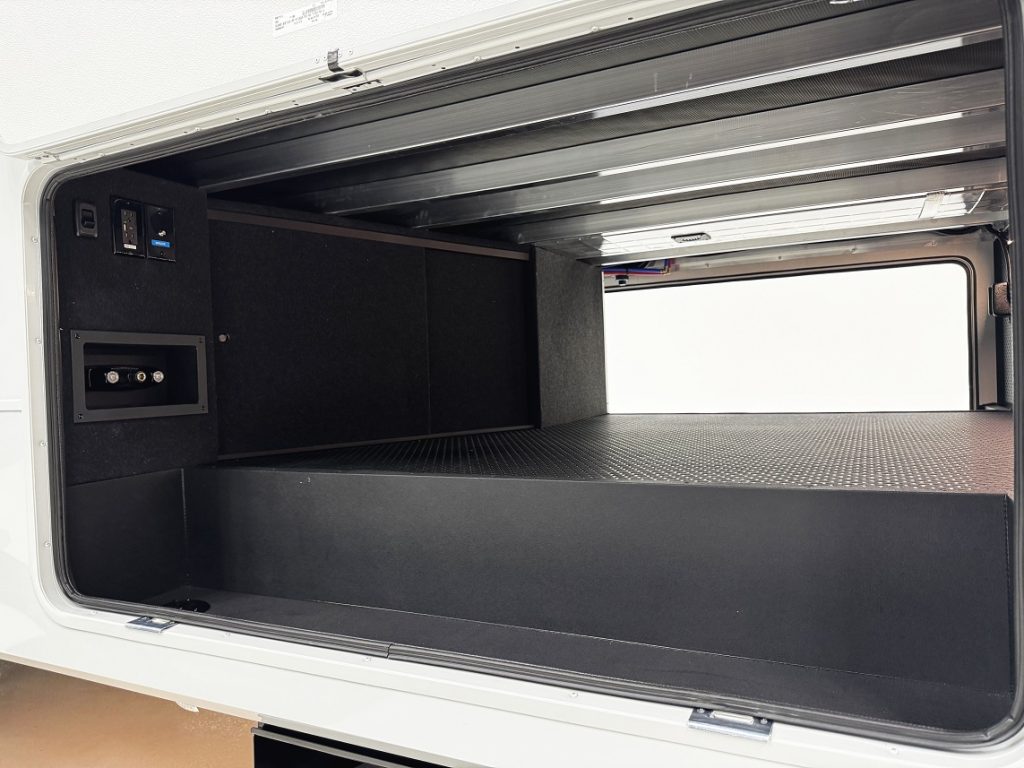

And when it comes to storage, Brinkley didn’t cut corners. The oversized drop-frame pass-through can handle bulky gear like chairs, totes, or tables — and there’s even more room in the rear patio compartments.
Brass PEX plumbing keeps everything tucked cleanly out of the way, so you can actually use the space.
Brinkley Z 3420 Key Exterior Features:
- Painted aluminum exterior for better durability and repairability
- Heated and enclosed underbelly with radiant barrier insulation
- Factory-installed 200W solar panel + 3,000W inverter prep
- 60,000 BTU on-demand tankless water heater
- Anti-lock brake system (ABS), sway control, and hill-start assist
- Drop-frame pass-through storage with brass PEX plumbing
- Back-up camera prep and full ladder for roof access
- 19′ power awning with dimmable LED lighting
- Outdoor gas grill quick-connect hookup
- Skirt-mounted exterior speakers for better sound at camp
- Single sewer outlet for easier dump station stops
- Power stabilizer jacks
This rugged fifth wheel isn’t just good-looking — it’s packed with the kind of gear that make camp life easy.
Already have a camper but considering trading up to a Brinkley?
Find out what your current camper is worth.
Insider Tip: Learn how the value of your used camper is determined by RV dealers.

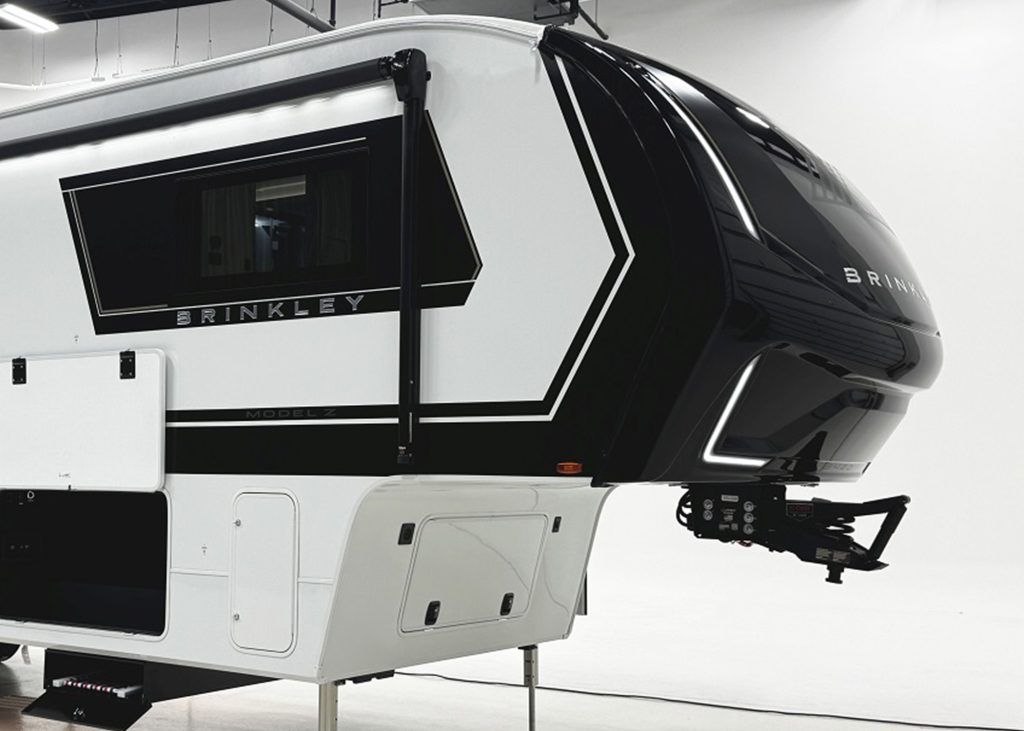

How Easy Is the Brinkley Z 3420 to Tow?
Let’s be real — this isn’t a lightweight travel trailer. It’s a big fifth wheel with big features, and that means you’ll need a properly equipped three-quarter-ton truck or heavier to handle it safely.

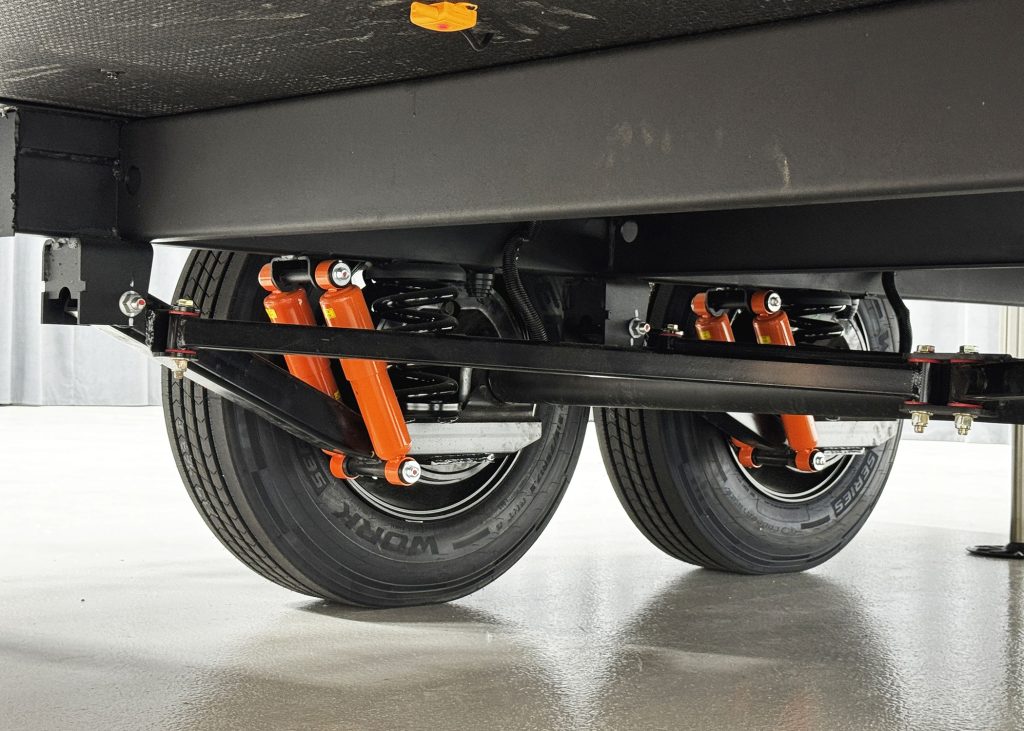

But Brinkley did their part to make towing feel more stable and secure. From the anti-lock brake system (ABS) to electronic sway control and hill-start assist, this 5th wheel is designed to help you stay in control, even when the road gets a little sketchy.
Towing & Safety Highlights:
- ABS electric brakes – helps reduce wheel lockup for smoother, safer stops
- Sway control – adds stability when towing in wind or on rough roads
- Hill-start assist – keeps the rig from rolling back on inclines
- Heavy-duty suspension system – for a smoother ride and better handling
- TPMS-ready tires – compatible with tire pressure monitoring systems
- Turning point pin box – tighter turns in tighter spots
- LED hitch & marker lights – better visibility when towing at night or in low light
Towing Tips for the Brinkley Z 3420

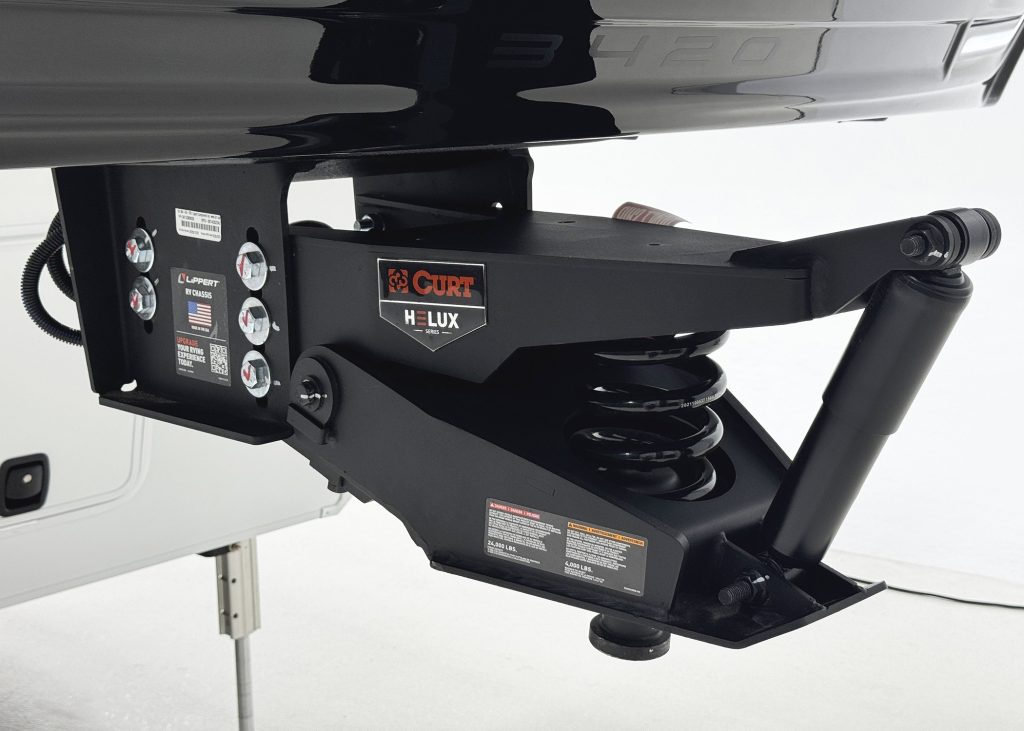

With a GVWR of 16,800 lbs and a hitch weight around 2,600 lbs, the Z 3420 is built for three-quarter or one-ton trucks — ideally with a diesel engine and a factory tow package.
You’ll want a fifth wheel hitch rated for the load, and if you’ve got a short bed truck, a sliding hitch can save your rear window in tight turns.
Want to See the Floor Plan and Price of a Brinkley Model Z 3420?
Is the Brinkley Z 3420 a Good Fit for You?
This fifth wheel isn’t for everyone — that’s not a flaw, it’s the feature. Here’s who the Z 3420 is built for, and who might want to look at something a little different.
The Brinkley Z 3420 Is a Good Fit For:
- Campers who want luxury features without stepping into a massive RV
- Couples who value space to stretch out, host, or just unwind
- Anyone who loves the idea of a rear patio and wetbar setup
- RVers who appreciate good storage, thoughtful layouts, and smarter design
- Towable fifth wheel fans with a truck that can handle serious weight
It Might Not Be the Best Fit If:
- You don’t have a three-quarter or one-ton truck to tow it
- You prefer a traditional rear living layout without a patio
- You’re camping with a large group and need extra sleeping space
- You’re shopping for a more budget-conscious or beginner-friendly RV
- You’d rather have a toy hauler garage than an open patio space
Final Thoughts on the Brinkley Z 3420 Fifth Wheel
The Brinkley Model Z 3420 flips the script on traditional fifth wheels. It’s big, bold, and built for campers who want real space to relax — inside and out.
From the camp-side windows to the rear patio and wet bar, this one’s full of the little details that add up to a better camping experience.
If you want a fifth wheel that doesn’t just look good on paper but actually delivers at the campground, the Z 3420 should be on your shortlist.
At Bish’s RV, we’ve followed Brinkley from the start and reviewed every model. We can help you find the Brinkley luxury RV that fits your camping style best — just reach out anytime.
Next Steps to Owning a Brinkley Model Z 3420:
Can I Pre-Order a Brinkley Z 3420 and Save Money?
Yes. Pre-ordering your Brinkley Z 3420 through Bish’s RV lets you skip the wait and get the exact features you want — without paying for options you don’t need.
By ordering through us, you get a factory-built RV customized to your specs, which can often cost less than buying one off the lot. And it’s not just Brinkley — with 22+ locations nationwide, we can help you custom order nearly any RV on the market.
Not near a Bish’s RV? No problem. In many cases, we can arrange delivery so your new RV gets to you — wherever you are.
Let us help you get the right RV, your way — and maybe save while you’re at it.
Shop our inventory and find the perfect Brinkley RV for you.
Frequently Asked Questions About the Brinkley Z 3420
1. What makes the Brinkley Z 3420 different from other fifth wheels?
The Z 3420 flips the layout of the popular Z 3400 to put your windows and view on the campsite side. It keeps the rear patio, adds a built-in wet bar, and improves storage, flow, and function throughout — all while staying under 40 feet.
2. What’s the difference between Brinkley’s Z Series and their G or Model I series?
The Z Series is Brinkley’s luxury fifth wheel line made for extended stays and full-time RVers. Model I is their luxury travel trailer line, and the G Series is for toy haulers with built-in garage space.
3. How much does the Brinkley Z 3420 cost?
The MSRP is around $133,656, but actual prices vary depending on the dealer, region, and options. Most Z 3420s fall somewhere between $100,000 and $130,000. You can click “Get Lowest Price” on our site to see real-time pricing from Bish’s RV.
4. What’s the hitch weight and GVWR of the Z 3420?
The GVWR is 16,500 lbs and the hitch weight is about 2,855 lbs, so you’ll need a properly equipped 3/4-ton or 1-ton truck to safely tow this RV.
5. Does the Z 3420 come with solar?
Yes — the Z 3420 includes a 370W solar panel, inverter prep, and it’s lithium battery ready. That means you’re already set up for off-grid camping, with the option to expand your solar system later.
6. How long is the Brinkley Z 3420?
It measures about 39 feet 3 inches in overall length — long enough for space and features, but still under 40 feet for many parks and campsites.
7. Can I customize or pre-order a Brinkley Z 3420?
Yes! You can pre-order the Z 3420 with your preferred options, colors, and packages. Pre-ordering through Bish’s RV often means you get the exact build you want — and potentially at a better price than buying off the lot.
8. Does Bish’s RV ship Brinkley RVs to other states?
Yes. Even if there isn’t a Bish’s location near you, we can often arrange delivery of your new Brinkley RV right to your door or a nearby pickup point.
